Arduino Como usar codigo com modulo l293d

xandeco1603

Por xandeco1603
em Microcontroladores

 Compartilhar

Posts recomendados

xandeco1603


xandeco1603

Postado
Postado

#include <Wire.h>
#include "SSD1306Ascii.h"
#include "SSD1306AsciiWire.h"
#define I2C_ADDRESS 0x3C
#define RST_PIN -1
SSD1306AsciiWire oled;
#include "U8glib.h"
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_NONE|U8G_I2C_OPT_DEV_0);	// I2C / TWI
const uint8_t rook_bitmap[] PROGMEM = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x0C, 0x00, 0x0E, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1E, 0x00, 0x0F, 0x00, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0x80, 0x0F, 0xE0, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xC0, 0x0F, 0xE0, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xE0, 0x0F, 0xF0, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xF8, 0x0F, 0xFC, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFC, 0x0F, 0xFE, 0x07, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0x0F, 0xFF, 0x87, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0x8F, 0xFF, 0xC7, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xCF, 0xFF, 0xE7, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xEF, 0xFF, 0xE7, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x1F, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};
#include <Servo.h>
Servo myservo;
#define  EN   6
#define  M1   4
#define  M2   7
#define  OUTA   12
#define  OUTB    10
#define  SW    11

int state = 0;
int statea = 0;
int Astate = 0;
int Alaststate = 0;
int count = 0;
int PWM=200;
int startpos =120;
int minpos=140;
int maxpos =178;
int pos;
int pause = 20;
int k;
int encoder_pin = 2; // pulse output from the module

int pulses;
int x ;


void draw(void) {
  // graphic commands to redraw the complete screen should be placed here

  u8g.drawBitmapP( 10, 0, 16, 64, rook_bitmap);

}



void counter()
{
   //Update count
   pulses++;
}

void setup() {
  Wire.begin();
  Wire.setClock(400000L);
  //Serial.begin(9600);
#if RST_PIN >= 0
  oled.begin(&Adafruit128x64, I2C_ADDRESS, RST_PIN);
#else // RST_PIN >= 0
  oled.begin(&Adafruit128x64, I2C_ADDRESS);
#endif // RST_PIN >= 0

  oled.setFont(Adafruit5x7);
  oled.clear();
  pinMode(SW, INPUT_PULLUP);
  pinMode(OUTA, INPUT);
  pinMode(OUTB, INPUT);
  pinMode(EN, OUTPUT);
  pinMode(M1, OUTPUT);
  pinMode(M2, OUTPUT);
 Alaststate = digitalRead(OUTA);
 myservo.attach(9);
 myservo.write(minpos);
Serial.begin(9600);

pinMode(encoder_pin, INPUT);
   //Interrupt 0 is digital pin 2
   //Triggers on Falling Edge (change from HIGH to LOW)
   attachInterrupt(0, counter, CHANGE);
   // Initialize
   pulses = 0;
}


void loop() {





  if (state == 0) {
   u8g.firstPage();
  do {
    draw();
  } while( u8g.nextPage() );

  }





if (!digitalRead(SW) && state == 0) {
   oled.clear();
    staticmenu();
    mainmenu();
    mot_stop();
    state = 1;
  }

if (state == 1){
   Astate = digitalRead(OUTA);


  if (Astate != Alaststate){
     // If the outputB state is different to the outputA state, that means the encoder is rotating clockwise
     if (digitalRead(OUTB) != Astate) {
       count ++;
     } else {
       count --;
     }
     Serial.print("Position: ");
     Serial.println(count);
   }
   Alaststate = Astate; // Updates the previous state of the outputA with the current state

 if ( count ==0){
   cursorup();
   statea = 1;
 }

 if ( count <0){
   cursordown();
   statea =2;

 }

 if ( count >0){
   cursordown();
   statea =2;
 }



if (count <-2 || count >2){
  count = 0;
 cursorup();
 statea = 1;
}
}





if (statea ==1 && !digitalRead(SW)){

oled.clear();
state = 2;
    staticmenu();
    automenu();

}

if (state == 2){
   Astate = digitalRead(OUTA);


  if (Astate != Alaststate){
     // If the outputB state is different to the outputA state, that means the encoder is rotating clockwise
     if (digitalRead(OUTB) != Astate) {
       count ++;
     } else {
       count --;
     }
     Serial.print("Position: ");
     Serial.println(count);
     oled.set2X();
  oled.setCursor(10, 6);
  oled.println(abs(count));
  oled.setCursor(50, 6);
  oled.println("mtr");
   }
   Alaststate = Astate; // Updates the previous state of the outputA with the current state
statea =5;
}

if (state ==2 && !digitalRead(SW)){
  oled.clear();
  mot_run();
  start();
  state = 4;
}

if (state == 4){


  for(pos = minpos; pos <= maxpos; pos += 1)
  {    Serial.println(pulses);
    myservo.write(pos);
     pulse();
    if (k >= abs(count)){
       state = 10;
      done();
//pulses = 0;        // bail out on sensor detect
       break;

    }    // waits 15ms for the servo to reach the position
    delay(pause);
  }
  for(pos = maxpos; pos>=minpos; pos-=1)     // goes from 180 degrees to 0 degrees
  {      Serial.println(pulses);
    myservo.write(pos);
    pulse();
      // tell servo to go to position in variable 'pos'
    if (k >= abs(count)){
state = 10;
mot_stop();
done();
//pulses = 0; // bail out on sensor detect
       break;

    }                       // waits 15ms for the servo to reach the position
   delay(pause);
  }



}







if (statea == 2 && !digitalRead(SW)){
  oled.clear();
    staticmenu();
    manualmenu();
    mot_stop();
statea = 3;
state = 3;
}


if ( statea == 3 && !digitalRead(SW)){
  oled.clear();

  mot_run();
  start();

  statea = 4;

}


if (statea ==4){

  for(pos = minpos; pos <= maxpos; pos += 1) // goes from 0 degrees to 180 degrees
  {    Serial.println(pulses);                                // in steps of 1 degree
    myservo.write(pos);
     pulse();
    if (!digitalRead(SW)){
        statea = 2;
pulses = 0;        // bail out on sensor detect
       break;

    }    // waits 15ms for the servo to reach the position
    delay(pause);
  }
  for(pos = maxpos; pos>=minpos; pos-=1)     // goes from 180 degrees to 0 degrees
  {      Serial.println(pulses);
    myservo.write(pos);
    pulse();
      // tell servo to go to position in variable 'pos'
    if (!digitalRead(SW)){
 statea = 2;
pulses = 0; // bail out on sensor detect
       break;

    }                       // waits 15ms for the servo to reach the position
   delay(pause);
  }

}


 attachInterrupt(0, counter, FALLING);

}

 void staticmenu() {
  oled.set2X();
  oled.setCursor(0, 0);
  oled.println("BOBINADEIRA");
  oled.set1X();
  oled.setCursor(0, 13);
  oled.println("---------------------");
  //oled.display();

}

void mainmenu() {
  oled.set2X();
  oled.setCursor(35, 25);
  oled.println("AUTO  ");
  oled.setCursor(35, 55);
  oled.println("MANUAL");


}

void settingmenu() {
  oled.set2X();
  oled.setCursor(35, 25);
  oled.println("SETTING");
  oled.setCursor(35, 55);
  oled.println(count);



}


 void cursorup() {
  oled.set2X();
  oled.setCursor(10, 3);
  oled.println(">");
  oled.setCursor(10, 5);
  oled.println(" ");
}

void cursordown() {
  oled.set2X();
  oled.setCursor(10, 3);
  oled.println(" ");
  oled.setCursor(10, 5);
  oled.println(">");
}


void manualmenu() {
  oled.set2X();
  oled.setCursor(25, 65);
  oled.println("PRESS");
  oled.setCursor(10, 250);
  oled.println("TO START");
}



void automenu() {
  oled.set2X();
  oled.setCursor(5, 65);
  oled.println("SET LENGTH");

}

void set_length(){
  oled.set2X();

  oled.setCursor(10, 250);
  oled.println(count);
}


void start() {
  oled.set2X();
  oled.setCursor(5, 65);
  oled.println("RUNNING.. ");
}
void done() {
 oled.clear();
   oled.set2X();
  oled.setCursor(0, 0);
  oled.println("...DONE...");
  oled.setCursor(10, 65);
  oled.println("       ");
   oled.setCursor(10, 80);
  oled.println(abs(count));
   oled.setCursor(50, 4);
  oled.println("mtr");


}
void pulse() {
  k = pulses/450;
  oled.set2X();
  oled.setCursor(10, 5);
  oled.println(k);
  oled.setCursor(60, 5);
  oled.println("mtr");


}





void mot_run(){
  analogWrite(EN, PWM);
  digitalWrite(M1,HIGH);
  digitalWrite(M2,LOW);
}

void servo(){
  for(pos = minpos; pos <= maxpos; pos += 1) // goes from 0 degrees to 180 degrees
  {                                  // in steps of 1 degree
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);     // waits 15ms for the servo to reach the position
  }
  for(pos = maxpos; pos>=minpos; pos-=1)     // goes from 180 degrees to 0 degrees
  {
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
  }

  }


void mot_stop(){
  analogWrite(EN, 0);
  digitalWrite(M1,LOW);
  digitalWrite(M2,LOW);

}

Alguém poderia me auxiliar com o código abaixo: Quero usa-lo com modulo L293d, duvida onde ligar
Display Lcd Oled Modulo Para Arduino 0.96 I2c Iic Spi e o Encoder Decoder KY-040 Rotacional.

Outra duvida, muda alguma coisa no código

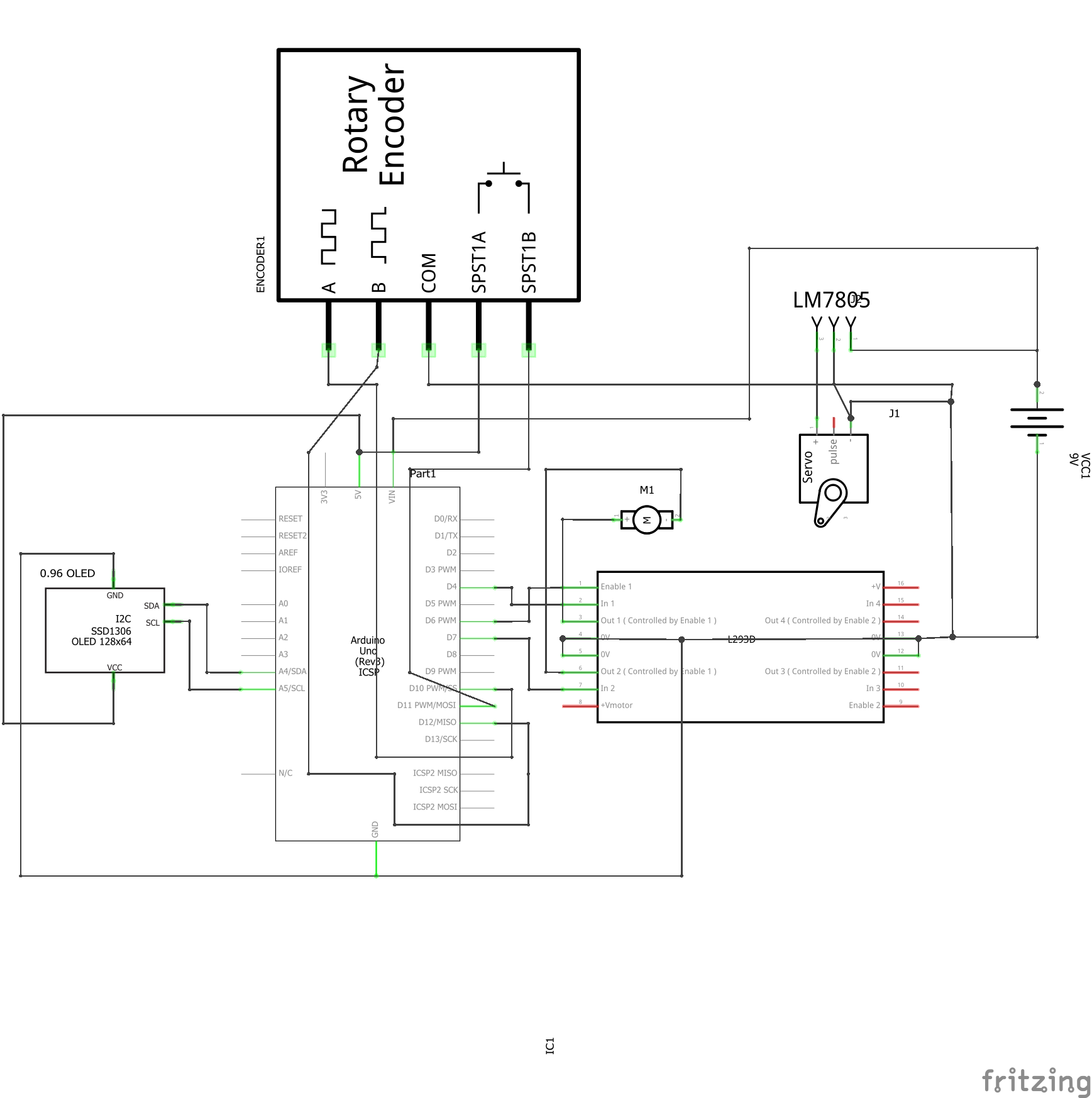

Em anexo circuito e o código.









Link para o comentário
Compartilhar em outros sites
  • Membro VIP
.if


.if

Postado
  • Membro VIP
Postado

I2c liga na saída i2c, spi na spi. Mas antes

-faça um led piscar (x).

Depois, só depois faça uma coisa por vez:

-faça girar o motor ( )

-controle sua velocidade por pwm ( )

-faça mover o servo pra lá e pra cá ( )

-escreva/desenhe algo no display. ( )

-leia algo do rotary encoder e mostre no display ( )

Imprima o texto acima e marque com x cada etapa vencida 😁

Link para o comentário
Compartilhar em outros sites

Crie uma conta ou entre para comentar

Você precisa ser um usuário para fazer um comentário

Criar uma conta

Crie uma nova conta em nossa comunidade. É fácil!

Crie uma nova conta

Entrar

Já tem uma conta? Faça o login.

Entrar agora
 Compartilhar
Ir à lista de tópicos

Sobre o Clube do Hardware

No ar desde 1996, o Clube do Hardware é uma das maiores, mais antigas e mais respeitadas comunidades sobre tecnologia do Brasil. Leia mais

Direitos autorais

Não permitimos a cópia ou reprodução do conteúdo do nosso site, fórum, newsletters e redes sociais, mesmo citando-se a fonte. Leia mais

Mais

×
×
  • Criar novo...
