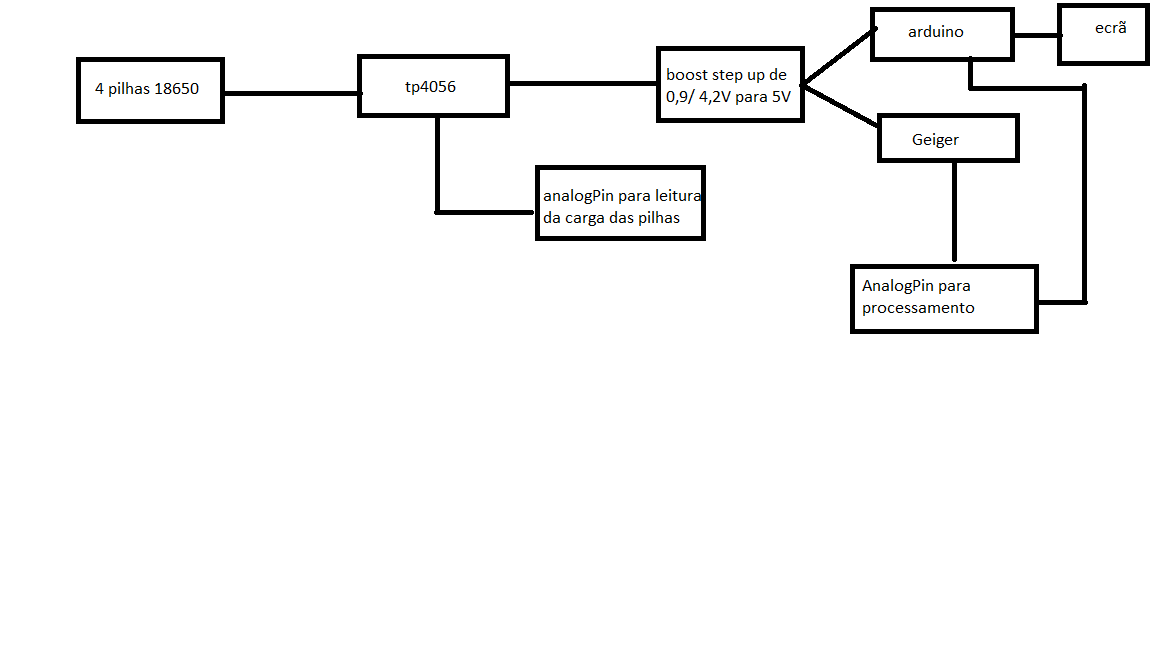

Boas tardes a todos, eu possuo um contador de Geiger que pode ser conectado a um Arduíno e como já possuía vários Arduíno decidi que ia embarcar neste projecto. O que decidi foi, usar um Arduíno Mega onde é conectado um cabo do contador permitindo receber o número de eventos ou pulsos correspondendo a cada partícula radioativa, neste caso beta e/ou gamma que o tubo captou, e um outro cabo que é ligado ao sistema de baterias de lítio que tenho que vai alimentar o sistema todo com 5V (arduino + ecrã + contador, todos trabalham nessa tensão) permitindo saber, através do controlo da tensão, o estado de carregamento das baterias de lítio (posso fazer um esquema em desenho para explicar melhor se preferirem). Tanto as informações referentes à carga das baterias como como os eventos do tubo são recebidos pelo Arduíno e são expostos, depois do processamento, num ecrã TFT de 3,5 polegadas. Na parte do processamento, gostaria que o Arduíno capta-se os eventos vindos do Geiger e mostra-se-mos para tal calculando os eventos por minuto (CPM), uma conversão desses eventos para uma unidade, Siervert, usando uma equação e ainda calculando a radiação acumulada. Eu nunca programei com um Arduíno, tendo apenas programado umas funções matemáticas em python na faculdade, dai vir aqui pedir ajuda. Ao pesquisar na internet descobri códigos para as 4 grandes partes deste projecto que são, 1º o processamento da informação vinda do Geiger,  2º como medir tensões usando o Arduíno e, por último,  3º como expor essa informação toda num ecrã TFT. Para tornar a programação mais simples, pensei em dividir por estas partes e trabalhar em separado para no final juntar tudo. Começando pelo processamento do Arduíno, achei este código que faz praticamente tudo o precisaria

//#include <LiquidCrystal_I2C.h>
#include <Wire.h>

unsigned long counts; //variable for GM Tube events, armazenamento de números de tamanho estendido, excluindo negativos
unsigned long previousMillis; //variable for measuring time
float averageCPM; // float permite aproximar a números inteiros
float sdCPM;//
int currentCPM;
float calcCPM;
//LiquidCrystal_I2C lcd(0x27, 20, 4);
float CPMArray[100];

#define LOG_PERIOD 30000 // count rate (in milliseconds)

void setup() { //setup
  counts = 0;
  currentCPM = 0;
  averageCPM = 0;
  sdCPM = 0;
  calcCPM = 0;
 // lcd.init();
  //lcd.backlight();
  Serial.begin(9600);
  pinMode(2, INPUT);
  attachInterrupt(digitalPinToInterrupt(2), impulse, FALLING); //define external interrupts
}

void loop() { //main cycle
  //lcd.setCursor(0,2);
  //lcd.print("CPM Count: ");
  //lcd.print(counts);
  //unsigned long currentMillis = millis();
  if (currentMillis - previousMillis > LOG_PERIOD) {
    previousMillis = currentMillis;
    CPMArray[currentCPM] = counts * 2;
    //lcd.clear();
    //lcd.setCursor(0,0);
    //lcd.print("uSv/hr: ");
    //lcd.print(outputSieverts(CPMArray[currentCPM]));
    counts = 0;
    averageCPM = 0;
    sdCPM = 0;
    //calc avg and sd
    for (int x=0;x<currentCPM+1;x++)  {
      averageCPM = averageCPM + CPMArray[x];
    }
    averageCPM = averageCPM / (currentCPM + 1);
    for (int x=0;x<currentCPM+1;x++)  {
      sdCPM = sdCPM + sq(CPMArray[x] - averageCPM);
    }
    sdCPM = sqrt(sdCPM / currentCPM) / sqrt(currentCPM+1);

    Serial.println("Avg: " + String(averageCPM) + " +/- " + String(sdCPM) + "  ArrayVal: " + String(CPMArray[currentCPM]));
    currentCPM = currentCPM + 1;
    displayAverageCPM();
  }
}

void impulse() {
  counts++;
}
void displayAverageCPM()  {
  lcd.setCursor(0,1);
  lcd.print("Avg: ");
  lcd.print(outputSieverts(averageCPM));
  lcd.print("+/-");
  lcd.print(outputSieverts(sdCPM));
}
float outputSieverts(float x)  {
  float y = x * 0.0057;
  return y;
}

Porém como quereria aprender a lógica por detrás do código, fique com algumas dúvidas. Primeiro,  para que serve o LOG_PERIOD e porque tem esse valor. Segundo, como ele mede o tempo, ou melhor, o que é o tempo aqui (o Millis)?



Espero que não tenha ficando nem muito extenso nem confuso.

Obrigado a todos,

cumprimentos.

Link para o comentário
Compartilhar em outros sites
  • Membro VIP
.if


.if

Postado
  • Membro VIP
Postado

Sim é interessante mostrar desenhos, esquemas, fotos e afins. Por cá dizemos que uma imagem vale mais que mil palavras (o qual zipei em 1.jpg>1k.txt 😜)

Vou focar em...

21 horas atrás, Tiago Catita disse:

o Arduíno capta-se os eventos vindos do Geiger e mostra-se-mos para tal calculando os eventos por minuto (CPM)

que penso ser o cerne de teu projeto. Assim que perceberes como o sistema faz a contagem, conte por 6 segundos exatos e multiplique por 10. Ou por 0.6 segundos e multiplique por 100. Assim a resposta é + rápida.



21 horas atrás, Tiago Catita disse:

Eu nunca programei com um Arduíno

Neste caso, a dica óbvia que te dou é: não queime a etapa hello world que é um simples ... pisca led . A net tá repleta 😉

Link para o comentário
Compartilhar em outros sites
  • mês depois...
DeadlyNicotine


DeadlyNicotine

Postado
  • Autor
Postado

Boas tardes, sou o @Tiago Catita (não me lembro do e-mail dessa conta). Por motivos de saúde parei por completo todos os projectos que antes tinha e por isso peço desculpa ao @.if por não ter respondido. Mas, felizmente já estou um pouco melhor e gostaria de prosseguir com este projeto. Em relação à electrônica, deixo em anexo um esquema que fiz no microsoft Paint à pressa. Em relação ao código, reparei que existe um projeto nos instructables muito parecido ao que eu quero fazer, tendo apenas de fazer umas modificações. o código é o seguinte:

#include <Arduino.h>
#include <ESP8266WiFi.h>
#include <EEPROM.h>
#include "SPI.h"
#include "Adafruit_GFX.h"
#include <Fonts/FreeSans9pt7b.h>
#include <Fonts/FreeSans12pt7b.h>
#include "Adafruit_ILI9341.h"
#include <XPT2046_Touchscreen.h>

#define CS_PIN D2
XPT2046_Touchscreen ts(CS_PIN);

#define TS_MINX 250
#define TS_MINY 200 // calibration points for touchscreen
#define TS_MAXX 3800
#define TS_MAXY 3750

#define TFT_DC D4
#define TFT_CS D8

#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x07E0
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
#define DOSEBACKGROUND 0x0455

Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC);

const int interruptPin = 5;

long count[61];
long fastCount[4]; // arrays to store running counts
int i = 0;         // array elements
int j = 0;

int page = 0;

long currentMillis;
long previousMillis;
unsigned long currentMicros;
unsigned long previousMicros;

long averageCount;
unsigned long currentCount;  // incremented by interrupt
unsigned long previousCount; // to activate buzzer and LED
unsigned long cumulativeCount;
float doseRate;
float totalDose;
char dose[5];
float doseAdjusted;

int doseLevel;               // determines home screen warning signs
int previousDoseLevel;

bool ledSwitch = 1;
bool buzzerSwitch = 1;
bool wasTouched;
bool integrationMode = 0; // 0 = slow, 1 = fast

bool doseUnits = 0; // 0 = Sievert, 1 = Rem
int alarmThreshold = 5;
int conversionFactor = 175;

int x, y; // touch points

int batteryInput;
int batteryPercent;
int batteryMapped = 212;       // pixel location of battery icon

const int saveUnits = 0;
const int saveAlertThreshold = 1; // Addresses for storing settings data in the EEPROM
const int saveCalibration = 2;

void ICACHE_RAM_ATTR isr();

const unsigned char settingsBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00,
    0x00, 0x01, 0xc0, 0x7f, 0xe0, 0x38, 0x00, 0x00, 0x00, 0x03, 0xf0, 0x7f, 0xe0, 0xfc, 0x00, 0x00,
    0x00, 0x07, 0xf9, 0xff, 0xf9, 0xfe, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00,
    0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00,
    0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00,
    0x00, 0x03, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00,
    0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x03, 0xff, 0xf0, 0x7f, 0xfc, 0x00, 0x00,
    0x00, 0x03, 0xff, 0xc0, 0x3f, 0xfc, 0x00, 0x00, 0x00, 0x1f, 0xff, 0x80, 0x1f, 0xff, 0x80, 0x00,
    0x00, 0xff, 0xff, 0x00, 0x0f, 0xff, 0xf0, 0x00, 0x01, 0xff, 0xff, 0x00, 0x07, 0xff, 0xf8, 0x00,
    0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00,
    0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00,
    0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00, 0x00, 0xff, 0xff, 0x00, 0x0f, 0xff, 0xf0, 0x00,
    0x00, 0x1f, 0xff, 0x80, 0x1f, 0xff, 0x80, 0x00, 0x00, 0x03, 0xff, 0xc0, 0x3f, 0xfc, 0x00, 0x00,
    0x00, 0x03, 0xff, 0xe0, 0x7f, 0xfc, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00,
    0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00,
    0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00,
    0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00,
    0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x07, 0xf9, 0xff, 0xf9, 0xfe, 0x00, 0x00,
    0x00, 0x03, 0xf0, 0x7f, 0xe0, 0xfc, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x7f, 0xe0, 0x38, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

const unsigned char buzzerOnBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x80, 0x0c, 0x00,
    0x00, 0x00, 0x07, 0x80, 0x0e, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x1f, 0x80,
    0x07, 0x00, 0x00, 0x00, 0x3f, 0x80, 0xc7, 0x80, 0x00, 0x00, 0xff, 0x80, 0xe3, 0x80, 0x00, 0x01,
    0xff, 0x80, 0xf3, 0xc0, 0x00, 0x03, 0xff, 0x80, 0x71, 0xc0, 0x00, 0x07, 0xff, 0x8c, 0x79, 0xc0,
    0x3f, 0xff, 0xff, 0x9e, 0x38, 0xe0, 0x3f, 0xff, 0xff, 0x8e, 0x38, 0xe0, 0x3f, 0xff, 0xff, 0x8e,
    0x3c, 0xe0, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0xe0, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x60, 0x3f, 0xff,
    0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70,
    0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87,
    0x1c, 0xe0, 0x3f, 0xff, 0xff, 0x8e, 0x3c, 0xe0, 0x3f, 0xff, 0xff, 0x8e, 0x38, 0xe0, 0x3f, 0xff,
    0xff, 0x9e, 0x38, 0xe0, 0x00, 0x07, 0xff, 0x8c, 0x79, 0xc0, 0x00, 0x03, 0xff, 0x80, 0x71, 0xc0,
    0x00, 0x00, 0xff, 0x80, 0xf1, 0xc0, 0x00, 0x00, 0x7f, 0x80, 0xe3, 0x80, 0x00, 0x00, 0x3f, 0x80,
    0xc7, 0x80, 0x00, 0x00, 0x1f, 0x80, 0x07, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x0f, 0x00, 0x00, 0x00,
    0x07, 0x80, 0x0e, 0x00, 0x00, 0x00, 0x03, 0x80, 0x0c, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

const unsigned char buzzerOffBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x80,
    0x00, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x7f, 0x80, 0x00, 0x00, 0x00, 0x00, 0xff, 0x80, 0x00, 0x00,
    0x00, 0x03, 0xff, 0x80, 0x00, 0x00, 0x00, 0x07, 0xff, 0x80, 0x00, 0x00, 0x00, 0x0f, 0xff, 0x80,
    0x00, 0x00, 0x0f, 0xff, 0xff, 0x80, 0x00, 0x00, 0x1f, 0xff, 0xff, 0x80, 0x00, 0x00, 0x3f, 0xff,
    0xff, 0x8f, 0x00, 0x78, 0x7f, 0xff, 0xff, 0x8f, 0x80, 0xf8, 0x7f, 0xff, 0xff, 0x8f, 0xc1, 0xf8,
    0x7f, 0xff, 0xff, 0x87, 0xe3, 0xf0, 0x7f, 0xff, 0xff, 0x83, 0xf7, 0xe0, 0x7f, 0xff, 0xff, 0x81,
    0xff, 0xc0, 0x7f, 0xff, 0xff, 0x80, 0xff, 0x80, 0x7f, 0xff, 0xff, 0x80, 0x7f, 0x00, 0x7f, 0xff,
    0xff, 0x80, 0x7f, 0x00, 0x7f, 0xff, 0xff, 0x80, 0xff, 0x80, 0x7f, 0xff, 0xff, 0x81, 0xff, 0xc0,
    0x7f, 0xff, 0xff, 0x83, 0xf7, 0xe0, 0x7f, 0xff, 0xff, 0x87, 0xe3, 0xf0, 0x7f, 0xff, 0xff, 0x8f,
    0xc1, 0xf0, 0x7f, 0xff, 0xff, 0x8f, 0x80, 0xf8, 0x3f, 0xff, 0xff, 0x8f, 0x00, 0x70, 0x3f, 0xff,
    0xff, 0x84, 0x00, 0x20, 0x1f, 0xff, 0xff, 0x80, 0x00, 0x00, 0x0f, 0xff, 0xff, 0x80, 0x00, 0x00,
    0x00, 0x07, 0xff, 0x80, 0x00, 0x00, 0x00, 0x03, 0xff, 0x80, 0x00, 0x00, 0x00, 0x01, 0xff, 0x80,
    0x00, 0x00, 0x00, 0x00, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x7f, 0x80, 0x00, 0x00, 0x00, 0x00,
    0x1f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x07, 0x80, 0x00, 0x00,
    0x00, 0x00, 0x03, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

const unsigned char ledOnBitmap[] PROGMEM = {
    0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00,
    0x00, 0x00, 0x00, 0x18, 0x07, 0x00, 0xc0, 0x00, 0x00, 0x1c, 0x07, 0x01, 0xc0, 0x00, 0x00, 0x1e,
    0x07, 0x03, 0xc0, 0x00, 0x00, 0x0e, 0x07, 0x03, 0x80, 0x00, 0x00, 0x0f, 0x00, 0x07, 0x80, 0x00,
    0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x1e, 0x00, 0x1f, 0xc0, 0x03, 0xc0, 0x0f, 0x80, 0x7f, 0xf0, 0x0f, 0x80, 0x07, 0xc1,
    0xff, 0xfc, 0x1f, 0x00, 0x03, 0xc3, 0xe0, 0x3e, 0x1e, 0x00, 0x00, 0x07, 0xc0, 0x0f, 0x00, 0x00,
    0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x07, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03,
    0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x1c, 0x00, 0x01, 0xc0, 0x00, 0x7f, 0x1c,
    0x00, 0x01, 0xc3, 0xf0, 0x7f, 0x1c, 0x00, 0x01, 0xc7, 0xf0, 0x3c, 0x0e, 0x00, 0x03, 0x81, 0xe0,
    0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0f, 0x00, 0x07,
    0x80, 0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x07, 0x80, 0x0f, 0x00, 0x00, 0x01, 0xc3,
    0xc0, 0x1e, 0x1c, 0x00, 0x07, 0xc1, 0xc0, 0x1c, 0x1f, 0x00, 0x0f, 0x81, 0xe0, 0x3c, 0x0f, 0x80,
    0x1e, 0x00, 0xe0, 0x38, 0x03, 0xc0, 0x0c, 0x00, 0xe0, 0x38, 0x01, 0x80, 0x00, 0x00, 0xf0, 0x78,
    0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00,
    0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0,
    0x00, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00};

const unsigned char ledOffBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x01,
    0xff, 0xfc, 0x00, 0x00, 0x00, 0x03, 0xe0, 0x3e, 0x00, 0x00, 0x00, 0x07, 0xc0, 0x0f, 0x00, 0x00,
    0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x07, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03,
    0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x1c, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x1c,
    0x00, 0x01, 0xc0, 0x00, 0x00, 0x1c, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00,
    0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0f, 0x00, 0x07,
    0x80, 0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x07, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x03,
    0xc0, 0x1e, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x1c, 0x00, 0x00, 0x00, 0x01, 0xe0, 0x3c, 0x00, 0x00,
    0x00, 0x00, 0xe0, 0x38, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x38, 0x00, 0x00, 0x00, 0x00, 0xf0, 0x78,
    0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00,
    0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0,
    0x00, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00};

const unsigned char backBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x1f, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xc0, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff,
    0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x01, 0xff,
    0x80, 0x00, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x07, 0xfc, 0x00, 0x00, 0x1f, 0xf0, 0x00, 0x00, 0x00,
    0x0f, 0xf0, 0x00, 0x00, 0x07, 0xf8, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x01, 0xfc, 0x00,
    0x00, 0x00, 0x3f, 0x80, 0x00, 0x00, 0x00, 0xfe, 0x00, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x01, 0xf8, 0x00, 0x00,
    0x00, 0x00, 0x0f, 0xc0, 0x00, 0x03, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x07, 0xe0, 0x00, 0x03, 0xe0,
    0x00, 0x00, 0x00, 0x00, 0x03, 0xf0, 0x00, 0x07, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x01, 0xf0, 0x00,
    0x0f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x01, 0xf8, 0x00, 0x0f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00,
    0xf8, 0x00, 0x1f, 0x00, 0x00, 0x0e, 0x00, 0x00, 0x00, 0x7c, 0x00, 0x1f, 0x00, 0x00, 0x1f, 0x00,
    0x00, 0x00, 0x7c, 0x00, 0x3e, 0x00, 0x00, 0x3f, 0x00, 0x00, 0x00, 0x3e, 0x00, 0x3e, 0x00, 0x00,
    0x7e, 0x00, 0x00, 0x00, 0x3e, 0x00, 0x3c, 0x00, 0x00, 0xfe, 0x00, 0x00, 0x00, 0x1e, 0x00, 0x7c,
    0x00, 0x01, 0xfc, 0x00, 0x00, 0x00, 0x1f, 0x00, 0x7c, 0x00, 0x03, 0xf8, 0x00, 0x00, 0x00, 0x1f,
    0x00, 0x78, 0x00, 0x07, 0xf0, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x78, 0x00, 0x0f, 0xe0, 0x00, 0x00,
    0x00, 0x0f, 0x00, 0xf8, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x0f, 0x80, 0xf8, 0x00, 0x3f, 0x80,
    0x00, 0x00, 0x00, 0x0f, 0x80, 0xf8, 0x00, 0x7f, 0x00, 0x00, 0x00, 0x00, 0x0f, 0x80, 0xf8, 0x00,
    0xff, 0xff, 0xff, 0xff, 0x00, 0x0f, 0x80, 0xf8, 0x01, 0xff, 0xff, 0xff, 0xff, 0x80, 0x0f, 0x80,
    0xf8, 0x01, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x07, 0x80, 0xf8, 0x01, 0xff, 0xff, 0xff, 0xff, 0x80,
    0x0f, 0x80, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f, 0x80, 0xf8, 0x00, 0x7e, 0x00, 0x00,
    0x00, 0x00, 0x0f, 0x80, 0xf8, 0x00, 0x3f, 0x80, 0x00, 0x00, 0x00, 0x0f, 0x80, 0xf8, 0x00, 0x1f,
    0x80, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x78, 0x00, 0x0f, 0xe0, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x78,
    0x00, 0x07, 0xe0, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x7c, 0x00, 0x03, 0xf8, 0x00, 0x00, 0x00, 0x1f,
    0x00, 0x7c, 0x00, 0x01, 0xf8, 0x00, 0x00, 0x00, 0x1f, 0x00, 0x3c, 0x00, 0x00, 0xfe, 0x00, 0x00,
    0x00, 0x1e, 0x00, 0x3e, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0x3e, 0x00, 0x3e, 0x00, 0x00, 0x3f,
    0x00, 0x00, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x00, 0x1f, 0x00, 0x00, 0x00, 0x7c, 0x00, 0x1f, 0x00,
    0x00, 0x0e, 0x00, 0x00, 0x00, 0x7c, 0x00, 0x0f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0xf8, 0x00,
    0x0f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0xf8, 0x00, 0x07, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x01,
    0xf0, 0x00, 0x03, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x03, 0xf0, 0x00, 0x03, 0xf0, 0x00, 0x00, 0x00,
    0x00, 0x07, 0xe0, 0x00, 0x01, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xc0, 0x00, 0x00, 0xfc, 0x00,
    0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0x00, 0x3f, 0x00, 0x00, 0x00,
    0x3f, 0x80, 0x00, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x01, 0xfc, 0x00,
    0x00, 0x00, 0x0f, 0xf0, 0x00, 0x00, 0x07, 0xf8, 0x00, 0x00, 0x00, 0x07, 0xfc, 0x00, 0x00, 0x1f,
    0xf0, 0x00, 0x00, 0x00, 0x03, 0xff, 0x80, 0x00, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff,
    0x7f, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x0f, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x1f, 0xfc, 0x00, 0x00, 0x00, 0x00};

void drawHomePage();
void drawSettingsPage();
void drawUnitsPage();
void drawAlertPage();
void drawCalibrationPage();

void setup()
{
  Serial.begin(38400);
  ts.begin();
  ts.setRotation(2);

  tft.begin();
  tft.setRotation(2);
  tft.fillScreen(ILI9341_BLACK);

  pinMode(D0, OUTPUT); // buzzer switch
  pinMode(D3, OUTPUT); // LED
  digitalWrite(D3, LOW);
  digitalWrite(D0, LOW);

  EEPROM.begin(512);

  doseUnits = EEPROM.read(saveUnits);
  alarmThreshold = EEPROM.read(saveAlertThreshold);
  conversionFactor = EEPROM.read(saveCalibration);

  Serial.println("Begin");
  attachInterrupt(interruptPin, isr, FALLING);

  WiFi.mode( WIFI_OFF );                // turn off wifi
  WiFi.forceSleepBegin();

  drawHomePage();
}

void loop()
{
  if (page == 0) // homepage
  {
    currentMillis = millis();
    if (currentMillis - previousMillis >= 1000)
    {
      previousMillis = currentMillis;

      batteryInput = analogRead(A0);
      batteryInput = constrain(batteryInput, 670, 870);
      batteryPercent = map(batteryInput, 670, 870, 0, 100);
      batteryMapped = map(batteryPercent, 100, 0, 212, 233);

      tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
      tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN); // draws battery icon every second

      count[i] = currentCount;
      i++;
      fastCount[j] = currentCount; // keep concurrent arrays of counts. Use only one depending on user choice
      j++;

      if (i == 61)
      {
        i = 0;
      }

      if (j == 4)
      {
        j = 0;
      }

      if (integrationMode == 1)
      {
        averageCount = (currentCount - fastCount[j]) * 20;
      }

      else
      {
        averageCount = currentCount - count[i]; // count[i] stores the value from 60 seconds ago
      }

      averageCount = ((averageCount) / (1 - 0.00000333 * float(averageCount))); // accounts for dead time of the geiger tube. relevant at high count rates

      if (doseUnits == 0)
      {
        doseRate = averageCount / float(conversionFactor);
        totalDose = cumulativeCount / (60 * float(conversionFactor));
        doseAdjusted = doseRate;
      }
      else if (doseUnits == 1)
      {
        doseRate = averageCount / float(conversionFactor * 10.0);
        totalDose = cumulativeCount / (60 * float(conversionFactor * 10.0)); // 1 mRem == 10 uSv
        doseAdjusted = doseRate * 10.0;
      }

      if (doseAdjusted < 1)
        doseLevel = 0; // determines alert level displayed on homescreen
      else if (doseAdjusted < alarmThreshold)
        doseLevel = 1;
      else
        doseLevel = 2;

      if (doseRate < 10)
      {
        dtostrf(doseRate, 4, 2, dose); // display two digits after the decimal point if value is less than 10
      }
      else if ((doseRate >= 10) && (doseRate < 100))
      {
        dtostrf(doseRate, 4, 1, dose); // display one digit after decimal point when dose is greater than 10
      }
      else if ((doseRate >= 100))
      {
        dtostrf(doseRate, 4, 0, dose); // whole numbers only when dose is higher than 100
      }

      tft.setFont();
      tft.setCursor(44, 52);
      tft.setTextSize(5);
      tft.setTextColor(ILI9341_WHITE, DOSEBACKGROUND);
      tft.println(dose); // display effective dose rate
      tft.setTextSize(1);

      tft.setFont();
      tft.setCursor(75, 122);
      tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
      tft.setTextSize(3);
      tft.println(averageCount); // Display CPM

      if (averageCount < 10)
      {
        tft.fillRect(92, 120, 100, 25, ILI9341_BLACK); // erase numbers that may have been left from previous high readings
      }
      else if (averageCount < 100)
      {
        tft.fillRect(109, 120, 90, 25, ILI9341_BLACK);
      }
      else if (averageCount < 1000)
      {
        tft.fillRect(126, 120, 75, 25, ILI9341_BLACK);
      }
      else if (averageCount < 10000)
      {
        tft.fillRect(143, 120, 60, 25, ILI9341_BLACK);
      }
      else if (averageCount < 100000)
      {
        tft.fillRect(162, 120, 45, 25, ILI9341_BLACK);
      }
      tft.setCursor(80, 192);
      tft.setTextSize(2);
      tft.setTextColor(ILI9341_WHITE, 0x630C);
      tft.println(cumulativeCount); // display total counts since reset

      tft.setCursor(80, 222);
      tft.println(totalDose); // display cumulative dose

      if (doseLevel != previousDoseLevel) // only update alert level if it changed. This prevents flicker
      {
        if (doseLevel == 0)
        {
          tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);
          tft.fillRoundRect(3, 94, 234, 21, 3, 0x2DC6);
          tft.setCursor(15, 104);
          tft.setFont(&FreeSans9pt7b);
          tft.setTextColor(ILI9341_WHITE);
          tft.setTextSize(1);
          tft.println("NORMAL BACKGROUND");

          previousDoseLevel = doseLevel;
        }
        else if (doseLevel == 1)
        {
          tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);
          tft.fillRoundRect(3, 94, 234, 21, 3, 0xCE40);
          tft.setCursor(29, 104);
          tft.setFont(&FreeSans9pt7b);
          tft.setTextColor(ILI9341_WHITE);
          tft.setTextSize(1);
          tft.println("ELEVATED ACTIVITY");

          previousDoseLevel = doseLevel;
        }
        else if (doseLevel == 2)
        {
          tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_RED);
          tft.fillRoundRect(3, 94, 234, 21, 3, 0xB8A2);
          tft.setCursor(17, 104);
          tft.setFont(&FreeSans9pt7b);
          tft.setTextColor(ILI9341_WHITE);
          tft.setTextSize(1);
          tft.println("HIGH RADIATION LEVEL");

          previousDoseLevel = doseLevel;
        }
      }
    } // end of millis()-controlled block that runs once every second. The rest of the code on page 0 runs every loop
    if (currentCount > previousCount)
    {
      if (ledSwitch)
        digitalWrite(D3, HIGH); // trigger buzzer and led if they are activated
      if (buzzerSwitch)
        digitalWrite(D0, HIGH);
      previousCount = currentCount;
      previousMicros = micros();
    }
    currentMicros = micros();
    if (currentMicros - previousMicros >= 200)
    {
      digitalWrite(D3, LOW);
      digitalWrite(D0, LOW);
      previousMicros = currentMicros;
    }

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched) // A way of "debouncing" the touchscreen. Prevents multiple inputs from single touch
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0); // get touch point and map to screen pixels
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 162 && x < 238) && (y > 259 && y < 318))
      {
        integrationMode = !integrationMode;
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 60; a++) // reset counts when integretation speed is changed
        {
          count[a] = 0;
        }
        for (int b = 0; b < 4; b++)
        {
          fastCount[b] = 0;
        }
        if (integrationMode == 0) // change button based on touch and previous state
        {
          tft.fillRoundRect(162, 259, 75, 57, 3, 0x2A86);
          tft.setFont(&FreeSans12pt7b);
          tft.setTextSize(1);
          tft.setCursor(163, 284);
          tft.println("SLOW");
          tft.setCursor(164, 309);
          tft.println("MODE");
        }
        else
        {
          tft.fillRoundRect(162, 259, 75, 57, 3, 0x2A86);
          tft.setFont(&FreeSans12pt7b);
          tft.setTextSize(1);
          tft.setCursor(169, 284);
          tft.println("FAST");
          tft.setCursor(164, 309);
          tft.println("MODE");
        }
      }
      else if ((x > 64 && x < 159) && (y > 259 && y < 318)) // reset count
      {
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 60; a++)
        {
          count[a] = 0;
        }
        for (int b = 0; b < 4; b++)
        {
          fastCount[b] = 0;
        }
      }
      else if ((x > 190 && x < 238) && (y > 151 && y < 202)) // toggle LED
      {
        ledSwitch = !ledSwitch;
        if (ledSwitch)
        {
          tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 153, ledOnBitmap, 45, 45, ILI9341_WHITE);
        }
        else
        {
          tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 153, ledOffBitmap, 45, 45, ILI9341_WHITE);
        }
      }
      else if ((x > 190 && x < 238) && (y > 205 && y < 256)) // toggle buzzer
      {
        buzzerSwitch = !buzzerSwitch;
        if (buzzerSwitch)
        {
          tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 208, buzzerOnBitmap, 45, 45, ILI9341_WHITE);
        }
        else
        {
          tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 208, buzzerOffBitmap, 45, 45, ILI9341_WHITE);
        }
      }
      else if ((x > 3 && x < 61) && (y > 259 && y < 316)) // settings button pressed
      {
        page = 1;
        drawSettingsPage();
      }
    }
  }
  else if (page == 1) // settings page. all display elements are drawn when drawSettingsPage() is called
  {
    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 6 && x < 71) && (y > 250 && y < 315)) // back button. draw homepage, reset counts and go back
      {
        page = 0;
        drawHomePage();
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 60; a++)
        {
          count[a] = 0; // counts need to be reset to prevent errorenous readings
        }
        for (int b = 0; b < 4; b++)
        {
          fastCount[b] = 0;
        }
      }
      else if ((x > 4 && x < 234) && (y > 70 && y < 120))
      {
        page = 2;
        drawUnitsPage();
      }
      else if ((x > 4 && x < 234) && (y > 127 && y < 177))
      {
        page = 3;
        drawAlertPage();
      }
      else if ((x > 4 && x < 234) && (y > 184 && y < 234))
      {
        page = 4;
        drawCalibrationPage();
      }
    }
  }
  else if (page == 2) // units page
  {
    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 6 && x < 71) && (y > 250 && y < 315)) // back button
      {
        page = 1;
        if (EEPROM.read(saveUnits) != doseUnits) // check current EEPROM value and only write if new value is different
        {
          EEPROM.write(saveUnits, doseUnits); // save current units to EEPROM during exit. This will be retrieved at startup
          EEPROM.commit();
        }
        drawSettingsPage();
      }
      else if ((x > 4 && x < 234) && (y > 70 && y < 120))
      {
        doseUnits = 0;
        tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
        tft.setCursor(30, 103);
        tft.println("Sieverts (uSv/hr)");

        tft.fillRoundRect(4, 128, 232, 48, 4, ILI9341_BLACK);
        tft.setCursor(47, 160);
        tft.println("Rem (mR/hr)");
      }
      else if ((x > 4 && x < 234) && (y > 127 && y < 177))
      {
        doseUnits = 1;
        tft.fillRoundRect(4, 71, 232, 48, 4, ILI9341_BLACK);
        tft.setCursor(30, 103);
        tft.println("Sieverts (uSv/hr)");

        tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
        tft.setCursor(47, 160);
        tft.println("Rem (mR/hr)");
      }
    }
  }
  else if (page == 3)
  {
    tft.setFont();
    tft.setTextSize(3);
    tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
    tft.setCursor(151, 146);
    tft.println(alarmThreshold);
    if (alarmThreshold < 10)
      tft.fillRect(169, 146, 22, 22, ILI9341_BLACK);

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 6 && x < 71) && (y > 250 && y < 315))
      {
        page = 1;
        if (EEPROM.read(saveAlertThreshold) != alarmThreshold)
        {
          EEPROM.write(saveAlertThreshold, alarmThreshold);
          EEPROM.commit(); // save to EEPROM to be retrieved at startup
        }
        drawSettingsPage();
      }
      else if ((x > 130 && x < 190) && (y > 70 && y < 120))
      {
        alarmThreshold++;
        if (alarmThreshold > 100)
          alarmThreshold = 100;
      }
      else if ((x > 130 && x < 190) && (y > 185 && y < 245))
      {
        alarmThreshold--;
        if (alarmThreshold <= 2)
          alarmThreshold = 2;
      }
    }
  }
  else if (page == 4)
  {
    tft.setFont();
    tft.setTextSize(3);
    tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
    tft.setCursor(161, 146);
    tft.println(conversionFactor);
    if (conversionFactor < 100)
      tft.fillRect(197, 146, 22, 22, ILI9341_BLACK);

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 6 && x < 71) && (y > 250 && y < 315))
      {
        page = 1;
        if (EEPROM.read(saveCalibration) != conversionFactor)
        {
          EEPROM.write(saveCalibration, conversionFactor);
          EEPROM.commit();
        }
        drawSettingsPage();
      }
      else if ((x > 160 && x < 220) && (y > 70 && y < 120))
      {
        conversionFactor++;
      }
      else if ((x > 160 && x < 220) && (y > 185 && y < 245))
      {
        conversionFactor--;
        if (conversionFactor <= 1)
          conversionFactor = 1;
      }
    }
  }
}

void drawHomePage()
{
  tft.fillRect(2, 21, 236, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setTextColor(ILI9341_CYAN);
  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(2, 16);
  tft.println("GC-01");
  tft.setTextColor(ILI9341_WHITE);
  tft.setCursor(73, 16);
  tft.println("Beta/Gamma");

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);
  tft.fillRoundRect(3, 23, 234, 69, 3, DOSEBACKGROUND);
  tft.setCursor(16, 40);
  tft.println("EFFECTIVE DOSE RATE:");
  tft.setCursor(165, 85);
  tft.setFont(&FreeSans12pt7b);
  if (doseUnits == 0)
  {
    tft.println("uSv/hr");
  }
  else if (doseUnits == 1)
  {
    tft.println("mR/hr");
  }

  tft.fillRoundRect(3, 94, 234, 21, 3, 0x2DC6);
  tft.setCursor(15, 110);
  tft.setFont(&FreeSans9pt7b);
  tft.setTextColor(ILI9341_WHITE);
  tft.setTextSize(1);
  tft.println("NORMAL BACKGROUND");

  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(7, 141);
  tft.println("CPM:");
  tft.drawRoundRect(3, 117, 234, 32, 3, DOSEBACKGROUND);

  tft.fillRoundRect(3, 151, 185, 105, 4, 0x630C);
  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(9, 171);
  tft.println("CUMULATIVE DOSE");
  tft.setCursor(7, 205);
  tft.println("Counts:");
  if (doseUnits == 0)
  {
    tft.setCursor(34, 235);
    tft.println("uSv:");
  }
  else if (doseUnits == 1)
  {
    tft.setCursor(37, 235);
    tft.println("mR:");
  }

  tft.fillRoundRect(3, 259, 58, 57, 3, 0x3B8F);
  tft.drawBitmap(1, 257, settingsBitmap, 60, 60, ILI9341_WHITE);

  tft.fillRoundRect(64, 259, 95, 57, 3, 0x6269);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(74, 284);
  tft.println("RESET");
  tft.setCursor(70, 309);
  tft.println("COUNT");

  if (integrationMode == 0)
  {
    tft.fillRoundRect(162, 259, 75, 57, 3, 0x2A86);
    tft.setCursor(163, 284);
    tft.println("SLOW");
    tft.setCursor(164, 309);
    tft.println("MODE");
  }
  else if (integrationMode == 1)
  {
    tft.fillRoundRect(162, 259, 75, 57, 3, 0x2A86);
    tft.setCursor(169, 284);
    tft.println("FAST");
    tft.setCursor(164, 309);
    tft.println("MODE");
  }
  if (ledSwitch)
  {
    tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 153, ledOnBitmap, 45, 45, ILI9341_WHITE);
  }
  else if (!ledSwitch)
  {
    tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 153, ledOffBitmap, 45, 45, ILI9341_WHITE);
  }
  if (buzzerSwitch)
  {
    tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 208, buzzerOnBitmap, 45, 45, ILI9341_WHITE);
  }
  else if (!buzzerSwitch)
  {
    tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 208, buzzerOffBitmap, 45, 45, ILI9341_WHITE);
  }
}

void drawSettingsPage()
{
  digitalWrite(D3, LOW);
  digitalWrite(D0, LOW);

  tft.fillRect(2, 21, 236, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setTextColor(ILI9341_CYAN);
  tft.setFont(&FreeSans9pt7b);
  tft.setTextSize(1);
  tft.setCursor(2, 16);
  tft.println("GC-01");
  tft.setTextColor(ILI9341_WHITE);
  tft.setCursor(73, 16);
  tft.println("Beta/Gamma");

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(57, 51);
  tft.println("SETTINGS");
  tft.drawFastHLine(59, 55, 117, WHITE);

  tft.drawRoundRect(3, 70, 234, 50, 4, WHITE);
  tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
  tft.setCursor(44, 103);
  tft.println("DOSE UNITS");

  tft.drawRoundRect(3, 127, 234, 50, 4, WHITE);
  tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
  tft.setCursor(5, 160);
  tft.println("ALERT THRESHOLD");

  tft.drawRoundRect(3, 184, 234, 50, 4, WHITE);
  tft.fillRoundRect(4, 185, 232, 48, 4, 0x2A86);
  tft.setCursor(37, 217);
  tft.println("CALIBRATION");

  tft.fillCircle(38, 282, 30, 0x3B8F);
  tft.drawBitmap(6, 250, backBitmap, 65, 65, ILI9341_WHITE);
}

void drawUnitsPage()
{
  tft.fillRect(2, 21, 236, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setCursor(2, 16);
  tft.setTextColor(ILI9341_CYAN);
  tft.setFont(&FreeSans9pt7b);
  tft.setTextSize(1);
  tft.println("GC-01");
  tft.setTextColor(ILI9341_WHITE);
  tft.setCursor(73, 16);
  tft.println("Beta/Gamma");

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(84, 51);
  tft.println("UNITS");
  tft.drawFastHLine(86, 55, 71, WHITE);

  tft.fillCircle(38, 282, 30, 0x3B8F);
  tft.drawBitmap(6, 250, backBitmap, 65, 65, ILI9341_WHITE);

  tft.drawRoundRect(3, 70, 234, 50, 4, WHITE);
  if (doseUnits == 0)
    tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
  tft.setCursor(30, 103);
  tft.println("Sieverts (uSv/hr)");

  tft.drawRoundRect(3, 127, 234, 50, 4, WHITE);
  if (doseUnits == 1)
    tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
  tft.setCursor(47, 160);
  tft.println("Rem (mR/hr)");
}

void drawAlertPage()
{
  tft.fillRect(2, 21, 236, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setCursor(2, 16);
  tft.setTextColor(ILI9341_CYAN);
  tft.setFont(&FreeSans9pt7b);
  tft.setTextSize(1);
  tft.println("GC-01");
  tft.setTextColor(ILI9341_WHITE);
  tft.setCursor(73, 16);
  tft.println("Beta/Gamma");

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(4, 51);
  tft.println("ALERT THRESHOLD");
  tft.drawFastHLine(5, 55, 229, WHITE);

  tft.fillCircle(38, 282, 30, 0x3B8F);
  tft.drawBitmap(6, 250, backBitmap, 65, 65, ILI9341_WHITE);

  tft.setCursor(30, 164);
  tft.println("uSv/hr:");

  tft.drawRoundRect(130, 70, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(131, 71, 58, 58, 4, 0x2A86);
  tft.drawRoundRect(130, 185, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(131, 186, 58, 58, 4, 0x2A86);

  tft.setCursor(140, 113);
  tft.setTextSize(3);
  tft.println("+");
  tft.setCursor(148, 232);
  tft.println("-");
  tft.setTextSize(1);
}

void drawCalibrationPage()
{
  tft.fillRect(2, 21, 236, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setCursor(2, 16);
  tft.setTextColor(ILI9341_CYAN);
  tft.setFont(&FreeSans9pt7b);
  tft.setTextSize(1);
  tft.println("GC-01");
  tft.setTextColor(ILI9341_WHITE);
  tft.setCursor(73, 16);
  tft.println("Beta/Gamma");

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(47, 51);
  tft.println("CALIBRATE");
  tft.drawFastHLine(48, 55, 133, WHITE);

  tft.fillCircle(38, 282, 30, 0x3B8F);
  tft.drawBitmap(6, 250, backBitmap, 65, 65, ILI9341_WHITE);

  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(8, 154);
  tft.println("Conversion Factor");
  tft.setCursor(8, 174);
  tft.println("(CPM per uSv/hr)");

  tft.drawRoundRect(160, 70, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(161, 71, 58, 58, 4, 0x2A86);
  tft.drawRoundRect(160, 185, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(161, 186, 58, 58, 4, 0x2A86);

  tft.setCursor(170, 113);
  tft.setFont(&FreeSans12pt7b);
  tft.setTextSize(3);
  tft.println("+");
  tft.setCursor(178, 232);
  tft.println("-");
  tft.setTextSize(1);
}

void isr() // interrupt service routine
{
  currentCount++;
  cumulativeCount++;
}

Ele parece muito extenso mas muito repetitivo. Como posso o "dissecar" para o entender por partes? Acham que consigo o perceber?

@.if, antes de mais, obrigado pela resposta. Irei sim começar pelo básico já este fim de semana para tentar atacar neste código um bocadinho assustador!



Obrigado,

cumprimentos

Sem Título.png

Link para o comentário
Compartilhar em outros sites
  • 3 semanas depois...
DeadlyNicotine


DeadlyNicotine

Postado
  • Autor
Postado

Boas noites a todos (Portugal), eu tenho estado bastante ocupado com a academia e não tenho tido muito tempo para "brincar" com este projeto, mas gostaria de o avançar/finalizar. Eu já consegui, com ajuda, comentar tudo o que era referente ao wi-fi (que não me interessa), porém eu acho que ainda existe um pedaço de código referente ao wi-fi que não consigo tirar pois o suposto pedaço compõe um ciclo maior onde é inserido parte do código essencial (considerando o wi-fi não essencial), será que poderia o remover? Ou vou ter de o deixar (colocarei o código em baixo)? Segundo, Acho o que já consegui perceber, para obter os pulsos do geiger (i.e. partículas radioativas) terei de colocar o meu pin INT no pino nº5 do meu Arduino e para obter informações da tensão da bateria tenho de de ligar a bateria no polo nº0 do Arduino, certo? Porém, o projeto é feito para um ESP8266 e não para um arduino, sendo necessário "converter" os pinos do ESP para os do Arduino, como está em comentário logo no inicio do código, alem disso, devido ao ecrã de 3,5'', eu só tenho um número de pinos, será que posso usar pinos digitais para ambos? Por fim, explicaram-me que o Arduino é um processador de 8 bits enquanto o ESP é de 16 e por isso terei que trocar algumas das variáveis de long/unsigned long to int/unsigned int, mas não percebi bem o porque e é um assunto que gostaria de perceber melhor, alguém tem alguma bibliografia que pudesse indicar de forma a perceber o impacto que as funções têm no código? Apenas descobri um link que comparava a velocidade, no caso, no calculo de números primos usando variáveis de 16 bit vs 8 bits e achei muito interessante, porém complicado

Código:

#include <Arduino.h>
//#include <ESP8266WiFi.h>
//#include <EthernetClient.h>
//#include <DNSServer.h>
//#include <ESP8266WebServer.h>
//#include <WifiManager.h>
#include <EEPROM.h>
#include "SPI.h"
#include "Adafruit_GFX.h"
#include <Fonts/FreeSans9pt7b.h>
#include <Fonts/FreeSans12pt7b.h>
#include "Adafruit_ILI9341.h"
#include <XPT2046_Touchscreen.h>

// Map ESP8266 pin names to rduino pins

const byte D0 = 2;
const byte D1 = 3;
const byte D2 = 4;
const byte D3 = 5;
const byte D4 = 6;
const byte D5 = 7;
const byte D6 = 8;
const byte D7 = 9;
const byte D8 = 10;

// WiFi variables
//unsigned long currentUploadTime;
//unsigned long previousUploadTime;
//int passwordLength;
//int SSIDLength;
//int channelIDLength;
//int writeAPILength;
//char ssid[20];
//char password[20];
//char channelID[20]; // = "864288";
//char channelAPIkey[20]; // = "37SAHQPEQ7FOBC20";
//char server[] = "api.thingspeak.com";
//int attempts; // number of connection attempts when device starts up in monitoring mode
//WiFiClient client;


#define CS_PIN D2
XPT2046_Touchscreen ts(CS_PIN);

#define TS_MINX 250
#define TS_MINY 200 // calibration points for touchscreen
#define TS_MAXX 3800
#define TS_MAXY 3750

#define TFT_DC D4
#define TFT_CS D8

#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x07E0
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
#define DOSEBACKGROUND 0x0455

Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC);

const int interruptPin = 5;

long count[61];
long fastCount[6]; // arrays to store running counts
long slowCount[181];
int i = 0;         // array elements
int j = 0;
int k = 0;

int page = 0;

long currentMillis;
long previousMillis;
unsigned long currentMicros;
unsigned long previousMicros;

unsigned long averageCount;
unsigned long currentCount;  // incremented by interrupt
unsigned long previousCount; // to activate buzzer and LED
unsigned long cumulativeCount;
float doseRate;
float totalDose;
char dose[5];
int doseLevel;               // determines home screen warning signs
int previousDoseLevel;

bool ledSwitch = 1;
bool buzzerSwitch = 1;
bool wasTouched;
int integrationMode = 0; // 0 = medium, 1 = fast, 2 == slow;

bool doseUnits = 0; // 0 = Sievert, 1 = Rem
unsigned int alarmThreshold = 5;
unsigned int conversionFactor = 175;

int x, y; // touch points

// Battery indicator variables
int batteryInput;
int batteryPercent;
int batteryMapped = 212;       // pixel location of battery icon
int batteryUpdateCounter = 29;

// EEPROM variables
const int saveUnits = 0;
const int saveAlertThreshold = 1; // Addresses for storing settings data in the EEPROM
const int saveCalibration = 2;
const int saveDeviceMode = 3;
const int saveLoggingMode = 4;
const int saveSSIDLen = 5;
const int savePWLen = 6;
const int saveIDLen = 7;
const int saveAPILen = 8;

// Data Logging variables
int addr = 200;                 // starting address for data logging
char jsonBuffer[14000] = "[";
char data[14500] = "{\"write_api_key\":\"";
unsigned long currentLogTime;
unsigned long previousLogTime;


// Timed Count Variables:
int interval = 5;
unsigned long intervalMillis;
unsigned long startMillis;
unsigned long elapsedTime;
int progress;
float cpm;
bool completed = 0;
int intervalSize; // stores how many digits are in the interval

// Logging variables
bool isLogging;

bool deviceMode;

// interrupt routine declaration
// void ICACHE_RAM_ATTR isr();  // ESP8266-style
void isr();

unsigned int previousIntMicros;              // timers to limit count increment rate in the ISR

const unsigned char gammaBitmap [] PROGMEM = {
  0x30, 0x00, 0x78, 0x70, 0xe8, 0xe0, 0xc4, 0xe0, 0x84, 0xc0, 0x05, 0xc0, 0x05, 0x80, 0x07, 0x80,
  0x03, 0x00, 0x07, 0x00, 0x0e, 0x00, 0x0e, 0x00, 0x1e, 0x00, 0x1e, 0x00, 0x1e, 0x00, 0x3e, 0x00,
  0x1c, 0x00, 0x00, 0x00
};

const unsigned char betaBitmap [] PROGMEM = {
  0x00, 0xc0, 0x00, 0x03, 0xf0, 0x00, 0x07, 0x18, 0x00, 0x06, 0x18, 0x00, 0x0e, 0x18, 0x00, 0x0e,
  0x18, 0x00, 0x0e, 0xf8, 0x00, 0x0e, 0x1c, 0x00, 0x0e, 0x0c, 0x00, 0x0e, 0x0c, 0x00, 0x0e, 0x0c,
  0x00, 0x0e, 0x0c, 0x00, 0x0f, 0x1c, 0x00, 0x0f, 0xf8, 0x00, 0x0e, 0x00, 0x00, 0x0e, 0x00, 0x00,
  0x0c, 0x00, 0x00, 0x00, 0x00, 0x00
};
const unsigned char wifiBitmap [] PROGMEM = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xf0, 0x00, 0x0f, 0xfe, 0x00, 0x3f, 0xff, 0x80, 0x78,
  0x03, 0xc0, 0xe0, 0x00, 0xe0, 0x47, 0xfc, 0x40, 0x0f, 0xfe, 0x00, 0x1c, 0x07, 0x00, 0x08, 0x02,
  0x00, 0x01, 0xf0, 0x00, 0x03, 0xf8, 0x00, 0x01, 0x10, 0x00, 0x00, 0x40, 0x00, 0x00, 0xe0, 0x00,
  0x00, 0x40, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};

const unsigned char settingsBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00,
    0x00, 0x01, 0xc0, 0x7f, 0xe0, 0x38, 0x00, 0x00, 0x00, 0x03, 0xf0, 0x7f, 0xe0, 0xfc, 0x00, 0x00,
    0x00, 0x07, 0xf9, 0xff, 0xf9, 0xfe, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00,
    0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00,
    0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00,
    0x00, 0x03, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00,
    0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x03, 0xff, 0xf0, 0x7f, 0xfc, 0x00, 0x00,
    0x00, 0x03, 0xff, 0xc0, 0x3f, 0xfc, 0x00, 0x00, 0x00, 0x1f, 0xff, 0x80, 0x1f, 0xff, 0x80, 0x00,
    0x00, 0xff, 0xff, 0x00, 0x0f, 0xff, 0xf0, 0x00, 0x01, 0xff, 0xff, 0x00, 0x07, 0xff, 0xf8, 0x00,
    0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00,
    0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00,
    0x01, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xf8, 0x00, 0x00, 0xff, 0xff, 0x00, 0x0f, 0xff, 0xf0, 0x00,
    0x00, 0x1f, 0xff, 0x80, 0x1f, 0xff, 0x80, 0x00, 0x00, 0x03, 0xff, 0xc0, 0x3f, 0xfc, 0x00, 0x00,
    0x00, 0x03, 0xff, 0xe0, 0x7f, 0xfc, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00,
    0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00,
    0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00,
    0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00,
    0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x07, 0xf9, 0xff, 0xf9, 0xfe, 0x00, 0x00,
    0x00, 0x03, 0xf0, 0x7f, 0xe0, 0xfc, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x7f, 0xe0, 0x38, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xc0, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

const unsigned char buzzerOnBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x80, 0x0c, 0x00,
    0x00, 0x00, 0x07, 0x80, 0x0e, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x1f, 0x80,
    0x07, 0x00, 0x00, 0x00, 0x3f, 0x80, 0xc7, 0x80, 0x00, 0x00, 0xff, 0x80, 0xe3, 0x80, 0x00, 0x01,
    0xff, 0x80, 0xf3, 0xc0, 0x00, 0x03, 0xff, 0x80, 0x71, 0xc0, 0x00, 0x07, 0xff, 0x8c, 0x79, 0xc0,
    0x3f, 0xff, 0xff, 0x9e, 0x38, 0xe0, 0x3f, 0xff, 0xff, 0x8e, 0x38, 0xe0, 0x3f, 0xff, 0xff, 0x8e,
    0x3c, 0xe0, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0xe0, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x60, 0x3f, 0xff,
    0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70,
    0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87, 0x1c, 0x70, 0x3f, 0xff, 0xff, 0x87,
    0x1c, 0xe0, 0x3f, 0xff, 0xff, 0x8e, 0x3c, 0xe0, 0x3f, 0xff, 0xff, 0x8e, 0x38, 0xe0, 0x3f, 0xff,
    0xff, 0x9e, 0x38, 0xe0, 0x00, 0x07, 0xff, 0x8c, 0x79, 0xc0, 0x00, 0x03, 0xff, 0x80, 0x71, 0xc0,
    0x00, 0x00, 0xff, 0x80, 0xf1, 0xc0, 0x00, 0x00, 0x7f, 0x80, 0xe3, 0x80, 0x00, 0x00, 0x3f, 0x80,
    0xc7, 0x80, 0x00, 0x00, 0x1f, 0x80, 0x07, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x0f, 0x00, 0x00, 0x00,
    0x07, 0x80, 0x0e, 0x00, 0x00, 0x00, 0x03, 0x80, 0x0c, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

const unsigned char buzzerOffBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x80,
    0x00, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x1f, 0x80, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x7f, 0x80, 0x00, 0x00, 0x00, 0x00, 0xff, 0x80, 0x00, 0x00,
    0x00, 0x03, 0xff, 0x80, 0x00, 0x00, 0x00, 0x07, 0xff, 0x80, 0x00, 0x00, 0x00, 0x0f, 0xff, 0x80,
    0x00, 0x00, 0x0f, 0xff, 0xff, 0x80, 0x00, 0x00, 0x1f, 0xff, 0xff, 0x80, 0x00, 0x00, 0x3f, 0xff,
    0xff, 0x8f, 0x00, 0x78, 0x7f, 0xff, 0xff, 0x8f, 0x80, 0xf8, 0x7f, 0xff, 0xff, 0x8f, 0xc1, 0xf8,
    0x7f, 0xff, 0xff, 0x87, 0xe3, 0xf0, 0x7f, 0xff, 0xff, 0x83, 0xf7, 0xe0, 0x7f, 0xff, 0xff, 0x81,
    0xff, 0xc0, 0x7f, 0xff, 0xff, 0x80, 0xff, 0x80, 0x7f, 0xff, 0xff, 0x80, 0x7f, 0x00, 0x7f, 0xff,
    0xff, 0x80, 0x7f, 0x00, 0x7f, 0xff, 0xff, 0x80, 0xff, 0x80, 0x7f, 0xff, 0xff, 0x81, 0xff, 0xc0,
    0x7f, 0xff, 0xff, 0x83, 0xf7, 0xe0, 0x7f, 0xff, 0xff, 0x87, 0xe3, 0xf0, 0x7f, 0xff, 0xff, 0x8f,
    0xc1, 0xf0, 0x7f, 0xff, 0xff, 0x8f, 0x80, 0xf8, 0x3f, 0xff, 0xff, 0x8f, 0x00, 0x70, 0x3f, 0xff,
    0xff, 0x84, 0x00, 0x20, 0x1f, 0xff, 0xff, 0x80, 0x00, 0x00, 0x0f, 0xff, 0xff, 0x80, 0x00, 0x00,
    0x00, 0x07, 0xff, 0x80, 0x00, 0x00, 0x00, 0x03, 0xff, 0x80, 0x00, 0x00, 0x00, 0x01, 0xff, 0x80,
    0x00, 0x00, 0x00, 0x00, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x7f, 0x80, 0x00, 0x00, 0x00, 0x00,
    0x1f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x0f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x07, 0x80, 0x00, 0x00,
    0x00, 0x00, 0x03, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

const unsigned char ledOnBitmap[] PROGMEM = {
    0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00,
    0x00, 0x00, 0x00, 0x18, 0x07, 0x00, 0xc0, 0x00, 0x00, 0x1c, 0x07, 0x01, 0xc0, 0x00, 0x00, 0x1e,
    0x07, 0x03, 0xc0, 0x00, 0x00, 0x0e, 0x07, 0x03, 0x80, 0x00, 0x00, 0x0f, 0x00, 0x07, 0x80, 0x00,
    0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x1e, 0x00, 0x1f, 0xc0, 0x03, 0xc0, 0x0f, 0x80, 0x7f, 0xf0, 0x0f, 0x80, 0x07, 0xc1,
    0xff, 0xfc, 0x1f, 0x00, 0x03, 0xc3, 0xe0, 0x3e, 0x1e, 0x00, 0x00, 0x07, 0xc0, 0x0f, 0x00, 0x00,
    0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x07, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03,
    0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x1c, 0x00, 0x01, 0xc0, 0x00, 0x7f, 0x1c,
    0x00, 0x01, 0xc3, 0xf0, 0x7f, 0x1c, 0x00, 0x01, 0xc7, 0xf0, 0x3c, 0x0e, 0x00, 0x03, 0x81, 0xe0,
    0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0f, 0x00, 0x07,
    0x80, 0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x07, 0x80, 0x0f, 0x00, 0x00, 0x01, 0xc3,
    0xc0, 0x1e, 0x1c, 0x00, 0x07, 0xc1, 0xc0, 0x1c, 0x1f, 0x00, 0x0f, 0x81, 0xe0, 0x3c, 0x0f, 0x80,
    0x1e, 0x00, 0xe0, 0x38, 0x03, 0xc0, 0x0c, 0x00, 0xe0, 0x38, 0x01, 0x80, 0x00, 0x00, 0xf0, 0x78,
    0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00,
    0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0,
    0x00, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00};

const unsigned char ledOffBitmap[] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x01,
    0xff, 0xfc, 0x00, 0x00, 0x00, 0x03, 0xe0, 0x3e, 0x00, 0x00, 0x00, 0x07, 0xc0, 0x0f, 0x00, 0x00,
    0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x07, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03,
    0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x1c, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x1c,
    0x00, 0x01, 0xc0, 0x00, 0x00, 0x1c, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00,
    0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0e, 0x00, 0x03, 0x80, 0x00, 0x00, 0x0f, 0x00, 0x07,
    0x80, 0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00, 0x07, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x03,
    0xc0, 0x1e, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x1c, 0x00, 0x00, 0x00, 0x01, 0xe0, 0x3c, 0x00, 0x00,
    0x00, 0x00, 0xe0, 0x38, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x38, 0x00, 0x00, 0x00, 0x00, 0xf0, 0x78,
    0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00,
    0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00,
    0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xe0,
    0x00, 0x00, 0x00, 0x00, 0x1f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00};

const unsigned char backBitmap [] PROGMEM = {
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xc0, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x1f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x03, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x1f, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0,
    0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0,
    0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x1f, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x07, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x1f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xc0, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};

void drawHomePage();              // page 0
void drawSettingsPage();          // page 1
void drawUnitsPage();             // page 2
void drawAlertPage();             // page 3
void drawCalibrationPage();       // page 4
void drawWifiPage();              // page 5
void drawTimedCountPage();        // page 6
void drawTimedCountRunningPage(int duration, int size); // page 7
void drawDeviceModePage();        // page 8

void drawFrame();
void drawBackButton();
void drawCancelButton();
void drawCloseButton();
void drawBlankDialogueBox();

long EEPROMReadlong(long address);
void EEPROMWritelong(int address, long value); // logging functions
void createJsonFile();
void clearLogs();

void setup()
{
  Serial.begin(38400);
  ts.begin();
  ts.setRotation(2);

  tft.begin();
  tft.setRotation(2);
  tft.fillScreen(ILI9341_BLACK);

  pinMode(D0, OUTPUT); // buzzer switch
  pinMode(D3, OUTPUT); // LED
  digitalWrite(D3, LOW);
  digitalWrite(D0, LOW);

//  EEPROM.begin(4096);   // initialize ESP8266 emulated EEPROM sector with 4 kb

  doseUnits = EEPROM.read(saveUnits);
  alarmThreshold = EEPROM.read(saveAlertThreshold);
  conversionFactor = EEPROM.read(saveCalibration);
  deviceMode = EEPROM.read(saveDeviceMode);
  isLogging = EEPROM.read(saveLoggingMode);
  addr = EEPROMReadlong(96);

//  SSIDLength = EEPROM.read(saveSSIDLen);
//  passwordLength = EEPROM.read(savePWLen);
//  channelIDLength = EEPROM.read(saveIDLen);
//  writeAPILength = EEPROM.read(saveAPILen);

//  for (int i = 10; i < 10 + SSIDLength; i++)
//  {
//    ssid[i - 10] = EEPROM.read(i);
//  }
//  Serial.println(ssid);
//
//  for (int j = 30; j < 30 + passwordLength; j++)
//  {
//    password[j - 30] = EEPROM.read(j);
//  }
//  Serial.println(password);
//
//  for (int k = 50; k < 50 + channelIDLength; k++)
//  {
//    channelID[k - 50] = EEPROM.read(k);
//  }
//  Serial.println(channelID);
//
//  for (int l = 70; l < 70 + writeAPILength; l++)
//  {
//    channelAPIkey[l - 70] = EEPROM.read(l);
//  }
//  Serial.println(channelAPIkey);

  attachInterrupt(interruptPin, isr, FALLING);

  drawHomePage();

//  if (!deviceMode)
//  {
//    WiFi.mode( WIFI_OFF );                // turn off wifi
//    WiFi.forceSleepBegin();
//    delay(1);
//  }
//  else
  {
//    WiFi.mode(WIFI_STA);
//    WiFi.begin(ssid, password);
    drawBlankDialogueBox();
    tft.setTextSize(1);
    tft.setFont(&FreeSans9pt7b);
    tft.setTextColor(ILI9341_WHITE);

    tft.setCursor(38, 140);
    tft.println("Connecting to WiFi..");

//    while ((WiFi.status() != WL_CONNECTED) && (attempts < 300))
//    {
//      delay(100);
//      attempts ++;
//    }
//    if (attempts >= 300)
//    {
//      deviceMode = 0;
//      tft.setCursor(45, 200);
//      tft.println("Failed to connect.");
//      delay(1000);
//    }
//    else
//    {
//      tft.setCursor(68, 200);
//      tft.println("Connected!");
//      delay(1000);
//    }
    drawHomePage();
  }
}

void loop()
{
  if (page == 0) // homepage
  {
    currentMillis = millis();
    if (currentMillis - previousMillis >= 1000)
    {
      previousMillis = currentMillis;

      batteryUpdateCounter ++;

      if (batteryUpdateCounter == 30){         // update battery level every 30 seconds. Prevents random fluctations of battery level.

        batteryInput = analogRead(A0);
        batteryInput = constrain(batteryInput, 590, 800);
        batteryPercent = map(batteryInput, 590, 800, 0, 100);
        batteryMapped = map(batteryPercent, 100, 0, 212, 233);

        tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
        if (batteryPercent < 10)
        {
          tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_RED);
        }
        else
        {
          tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN); // draws battery icon
        }

        batteryUpdateCounter = 0;
        Serial.println(batteryInput);
        Serial.println(batteryPercent);
      }

      count[i] = currentCount;
      i++;
      fastCount[j] = currentCount; // keep concurrent arrays of counts. Use only one depending on user choice
      j++;
      slowCount[k] = currentCount;
      k++;

      if (i == 61)
      {
        i = 0;
      }

      if (j == 6)
      {
        j = 0;
      }

      if (k == 181)
      {
        k = 0;
      }

      if (integrationMode == 2)
      {
        averageCount = (currentCount - slowCount[k]) / 3;
      }

      if (integrationMode == 1)
      {
        averageCount = (currentCount - fastCount[j]) * 12;
      }

      else if (integrationMode == 0)
      {
        averageCount = currentCount - count[i]; // count[i] stores the value from 60 seconds ago
      }

      averageCount = ((averageCount) / (1 - 0.00000333 * float(averageCount))); // accounts for dead time of the geiger tube. relevant at high count rates

      if (doseUnits == 0)
      {
        doseRate = averageCount / float(conversionFactor);
        totalDose = cumulativeCount / (60 * float(conversionFactor));

      }
      else if (doseUnits == 1)
      {
        doseRate = averageCount / float(conversionFactor * 10.0);
        totalDose = cumulativeCount / (60 * float(conversionFactor * 10.0)); // 1 mRem == 10 uSv

      }

      if (averageCount < conversionFactor/2) // 0.5 uSv/hr
        doseLevel = 0; // determines alert level displayed on homescreen
      else if (averageCount < alarmThreshold * conversionFactor)
        doseLevel = 1;
      else
        doseLevel = 2;

      if (doseRate < 10.0)
      {
        dtostrf(doseRate, 4, 2, dose); // display two digits after the decimal point if value is less than 10
      }
      else if ((doseRate >= 10) && (doseRate < 100))
      {
        dtostrf(doseRate, 4, 1, dose); // display one digit after decimal point when dose is greater than 10
      }
      else if ((doseRate >= 100))
      {
        dtostrf(doseRate, 4, 0, dose); // whole numbers only when dose is higher than 100
      }
      else {
        dtostrf(doseRate, 4, 0, dose);  // covers the rare edge case where the dose rate is sometimes errorenously calculated to be negative
      }

      tft.setFont();
      tft.setCursor(44, 52);
      tft.setTextSize(5);
      tft.setTextColor(ILI9341_WHITE, DOSEBACKGROUND);
      tft.println(dose); // display effective dose rate
      tft.setTextSize(1);

      tft.setFont();
      tft.setCursor(73, 122);
      tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
      tft.setTextSize(3);
      tft.println(averageCount); // Display CPM

      if (averageCount < 10)
      {
        tft.fillRect(90, 120, 144, 25, ILI9341_BLACK); // erase numbers that may have been left from previous high readings
      }
      else if (averageCount < 100)
      {
        tft.fillRect(107, 120, 127, 25, ILI9341_BLACK);
      }
      else if (averageCount < 1000)
      {
        tft.fillRect(124, 120, 110, 25, ILI9341_BLACK);
      }
      else if (averageCount < 10000)
      {
        tft.fillRect(141, 120, 93, 25, ILI9341_BLACK);
      }
      else if (averageCount < 100000)
      {
        tft.fillRect(160, 120, 74, 25, ILI9341_BLACK);
      }
      tft.setCursor(80, 192);
      tft.setTextSize(2);
      tft.setTextColor(ILI9341_WHITE, 0x630C);
      tft.println(cumulativeCount); // display total counts since reset

      tft.setCursor(80, 222);
      tft.println(totalDose); // display cumulative dose

      if (doseLevel != previousDoseLevel) // only update alert level if it changed. This prevents flicker
      {
        if (doseLevel == 0)
        {
          tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);
          tft.fillRoundRect(3, 94, 234, 21, 3, 0x2DC6);
          tft.setCursor(15, 104);
          tft.setFont(&FreeSans9pt7b);
          tft.setTextColor(ILI9341_WHITE);
          tft.setTextSize(1);
          tft.println("NORMAL BACKGROUND");

          previousDoseLevel = doseLevel;
        }
        else if (doseLevel == 1)
        {
          tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);
          tft.fillRoundRect(3, 94, 234, 21, 3, 0xCE40);
          tft.setCursor(29, 104);
          tft.setFont(&FreeSans9pt7b);
          tft.setTextColor(ILI9341_WHITE);
          tft.setTextSize(1);
          tft.println("ELEVATED ACTIVITY");

          previousDoseLevel = doseLevel;
        }
        else if (doseLevel == 2)
        {
          tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_RED);
          tft.fillRoundRect(3, 94, 234, 21, 3, 0xB8A2);
          tft.setCursor(17, 104);
          tft.setFont(&FreeSans9pt7b);
          tft.setTextColor(ILI9341_WHITE);
          tft.setTextSize(1);
          tft.println("HIGH RADIATION LEVEL");

          previousDoseLevel = doseLevel;
        }
      }
      Serial.println(currentCount);
    }
    // end of millis()-controlled block that runs once every second. The rest of the code on page 0 runs every loop
    if (currentCount > previousCount)
    {
      if (ledSwitch)
        digitalWrite(D3, HIGH); // trigger buzzer and led if they are activated
      if (buzzerSwitch)
        digitalWrite(D0, HIGH);
      previousCount = currentCount;
      previousMicros = micros();
    }
    currentMicros = micros();
    if (currentMicros - previousMicros >= 200)
    {
      digitalWrite(D3, LOW);
      digitalWrite(D0, LOW);
      previousMicros = currentMicros;
    }

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched) // A way of "debouncing" the touchscreen. Prevents multiple inputs from single touch
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0); // get touch point and map to screen pixels
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 162 && x < 238) && (y > 259 && y < 318))
      {
        integrationMode ++;
        if (integrationMode == 3)
        {
          integrationMode = 0;
        }
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 61; a++) // reset counts when integretation speed is changed
        {
          count[a] = 0;
        }
        for (int b = 0; b < 6; b++)
        {
          fastCount[b] = 0;
        }
        for (int c = 0; c < 181; c++)
        {
          slowCount[c] = 0;
        }
        if (integrationMode == 0) // change button based on touch and previous state
        {
          tft.fillRoundRect(162, 259, 74, 57, 3, 0x2A86);
          tft.setFont(&FreeSans12pt7b);
          tft.setTextSize(1);
          tft.setCursor(180, 283);
          tft.println("INT");
          tft.setCursor(177, 309);
          tft.println("60 s");
        }
        else if (integrationMode == 1)
        {
          tft.fillRoundRect(162, 259, 74, 57, 3, 0x2A86);
          tft.setFont(&FreeSans12pt7b);
          tft.setTextSize(1);
          tft.setCursor(180, 283);
          tft.println("INT");
          tft.setCursor(184, 309);
          tft.println("5 s");
        }
        else if (integrationMode == 2)
        {
          tft.fillRoundRect(162, 259, 74, 57, 3, 0x2A86);
          tft.setFont(&FreeSans12pt7b);
          tft.setTextSize(1);
          tft.setCursor(180, 283);
          tft.println("INT");
          tft.setCursor(169, 309);
          tft.println("180 s");
        }
      }
      else if ((x > 64 && x < 159) && (y > 259 && y < 318)) // timed count
      {
        page = 6;
        drawTimedCountPage();
      }
      else if ((x > 190 && x < 238) && (y > 151 && y < 202)) // toggle LED
      {
        ledSwitch = !ledSwitch;
        if (ledSwitch)
        {
          tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 153, ledOnBitmap, 45, 45, ILI9341_WHITE);
        }
        else
        {
          tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 153, ledOffBitmap, 45, 45, ILI9341_WHITE);
        }
      }
      else if ((x > 190 && x < 238) && (y > 205 && y < 256)) // toggle buzzer
      {
        buzzerSwitch = !buzzerSwitch;
        if (buzzerSwitch)
        {
          tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 208, buzzerOnBitmap, 45, 45, ILI9341_WHITE);
        }
        else
        {
          tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
          tft.drawBitmap(190, 208, buzzerOffBitmap, 45, 45, ILI9341_WHITE);
        }
      }
      else if ((x > 3 && x < 61) && (y > 259 && y < 316)) // settings button pressed
      {
        page = 1;
        drawSettingsPage();
      }
    }

    if (isLogging)
    {
      if(addr < 2100)
      {
        currentLogTime = millis();
        if ((currentLogTime - previousLogTime) >= 600000)   // log every 10 minutes
        {
          EEPROMWritelong(addr, averageCount);
          addr += 4;
          EEPROMWritelong(96, addr); // write current address number to an adress just before the logged data
          previousLogTime = currentLogTime;
//          EEPROM.commit(); // ESP8266 style
        }
      }
    }
//    if (deviceMode)    // deviceMode is 1 when in monitoring station mode. Uploads CPM to thingspeak every 5 minutes
//    {
//      currentUploadTime = millis();
//      if ((currentUploadTime - previousUploadTime) > 300000)
//      {
//        previousUploadTime = currentUploadTime;
//        if (client.connect(server, 80))
//        {
//          String postStr = channelAPIkey;
//          postStr += "&field2=";
//          postStr += String(averageCount);
//          postStr += "\r\n\r\n";
//          char temp[50] = "X-THINGSPEAKAPIKEY:";
//          strcat(temp, channelAPIkey);
//          strcat(temp, "\n");
//          client.print("POST /update HTTP/1.1\n");
//          client.print("Host: api.thingspeak.com\n");
//          client.print("Connection: close\n");
//          client.print(temp);
//          client.print("Content-Type: application/x-www-form-urlencoded\n");
//          client.print("Content-Length: ");
//          client.print(postStr.length());
//          client.print("\n\n");
//          client.print(postStr);
//          Serial.println(postStr);
//        }
//        client.stop();
//      }
//    }
//  }
//  else
  if (page == 1) // settings page. all display elements are drawn when drawSettingsPage() is called
  {
    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315)) // back button. draw homepage, reset counts and go back
      {
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 61; a++)
        {
          count[a] = 0; // counts need to be reset to prevent errorenous readings
        }
        for (int b = 0; b < 6; b++)
        {
          fastCount[b] = 0;
        }
        for (int c = 0; c < 181; c++)
        {
          slowCount[c] = 0;
        }
        page = 0;
        drawHomePage();
      }
      else if ((x > 3 && x < 234) && (y > 64 && y < 108))
      {
        page = 2;
        drawUnitsPage();
      }
      else if ((x > 3 && x < 234) && (y > 114 && y < 158))
      {
        page = 3;
        drawAlertPage();
      }
      else if ((x > 3 && x < 234) && (y > 164 && y < 208))
      {
        page = 4;
        drawCalibrationPage();
      }
      else if ((x > 3 && x < 234) && (y > 214 && y < 268))
      {
        page = 5;
        drawWifiPage();
      }
    }
  }
  else if (page == 2) // units page
  {
    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315)) // back button
      {
        page = 1;
        if (EEPROM.read(saveUnits) != doseUnits) // check current EEPROM value and only write if new value is different
        {
          EEPROM.write(saveUnits, doseUnits); // save current units to EEPROM during exit. This will be retrieved at startup
//          EEPROM.commit(); // ESP8266 style
        }
        drawSettingsPage();
      }
      else if ((x > 4 && x < 234) && (y > 70 && y < 120))
      {
        doseUnits = 0;
        tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
        tft.setCursor(30, 103);
        tft.println("Sieverts (uSv/hr)");

        tft.fillRoundRect(4, 128, 232, 48, 4, ILI9341_BLACK);
        tft.setCursor(47, 160);
        tft.println("Rems (mR/hr)");
      }
      else if ((x > 4 && x < 234) && (y > 127 && y < 177))
      {
        doseUnits = 1;
        tft.fillRoundRect(4, 71, 232, 48, 4, ILI9341_BLACK);
        tft.setCursor(30, 103);
        tft.println("Sieverts (uSv/hr)");

        tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
        tft.setCursor(47, 160);
        tft.println("Rems (mR/hr)");
      }
    }
  }
  else if (page == 3)        // alert thresold page
  {
    tft.setFont();
    tft.setTextSize(3);
    tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
    tft.setCursor(151, 146);
    tft.println(alarmThreshold);
    if (alarmThreshold < 10)
      tft.fillRect(169, 146, 22, 22, ILI9341_BLACK);

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315))
      {
        page = 1;
        if (EEPROM.read(saveAlertThreshold) != alarmThreshold)
        {
          EEPROM.write(saveAlertThreshold, alarmThreshold);
//          EEPROM.commit(); // ESP8266-style save to EEPROM to be retrieved at startup
        }
        drawSettingsPage();
      }
      else if ((x > 130 && x < 190) && (y > 70 && y < 120))
      {
        alarmThreshold++;
        if (alarmThreshold > 100)
          alarmThreshold = 100;
      }
      else if ((x > 130 && x < 190) && (y > 185 && y < 245))
      {
        alarmThreshold--;
        if (alarmThreshold <= 2)
          alarmThreshold = 2;
      }
    }
  }
  else if (page == 4)     // calibration page
  {
    tft.setFont();
    tft.setTextSize(3);
    tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
    tft.setCursor(161, 146);
    tft.println(conversionFactor);
    if (conversionFactor < 100)
      tft.fillRect(197, 146, 22, 22, ILI9341_BLACK);

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315))
      {
        page = 1;
        if (EEPROM.read(saveCalibration) != conversionFactor)
        {
          EEPROM.write(saveCalibration, conversionFactor);
//          EEPROM.commit(); // ESP8266 style
        }
        drawSettingsPage();
      }
      else if ((x > 160 && x < 220) && (y > 70 && y < 120))
      {
        conversionFactor++;
      }
      else if ((x > 160 && x < 220) && (y > 185 && y < 245))
      {
        conversionFactor--;
        if (conversionFactor <= 1)
          conversionFactor = 1;
      }
    }
  }
  else if (page == 5)  // Wifi page
  {
    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315))
      {
        page = 1;
        if (EEPROM.read(saveLoggingMode) != isLogging) // check current EEPROM value and only write if new value is different
        {
          EEPROM.write(saveLoggingMode, isLogging);
//          EEPROM.commit(); // ESP8266 style
        }
        drawSettingsPage();
      }
      else if ((x > 3 && x < 237) && (y > 64 && y < 108))  // wifi setup button
      {
        tft.setFont(&FreeSans9pt7b);
        tft.setTextSize(1);

        tft.fillRoundRect(10, 30, 220, 260, 6, ILI9341_BLACK);
        tft.drawRoundRect(10, 30, 220, 260, 6, ILI9341_WHITE);

        tft.setCursor(50, 50);
        tft.println("AP SETUP MODE");
        tft.drawFastHLine(50, 53, 145, ILI9341_WHITE);
        tft.setCursor(20, 80);
        tft.println("With any WiFi capable");
        tft.setCursor(20, 100);
        tft.println("device, connect to");
        tft.setCursor(20, 120);
        tft.println("network \"GC20\" and ");
        tft.setCursor(20, 140);
        tft.println("browse to 192.168.4.1");
        tft.setCursor(20, 160);
        tft.println("Enter credentials");
        tft.setCursor(20, 180);
        tft.println("of your WiFi network");
        tft.setCursor(20, 200);
        tft.println("and the Channel ID and");
        tft.setCursor(20, 220);
        tft.println("write API key of your");
        tft.setCursor(20, 240);
        tft.println("ThingSpeak channel");

        delay(100);
//        WiFiManager wifiManager;
//
//        char channelIDSt[20];
//        char writeAPISt[20];
//
//        WiFiManagerParameter channel_id("0", "Channel ID", channelIDSt, 20); // create custom parameters for setup
//
//        WiFiManagerParameter write_api("1", "Write API", writeAPISt, 20);
//        wifiManager.addParameter(&channel_id);
//        wifiManager.addParameter(&write_api);
//
//        wifiManager.startConfigPortal("GC20");            // put the esp in AP mode for wifi setup, create a network with name "GC20"
//
//        strcpy(channelIDSt, channel_id.getValue());
//        strcpy(writeAPISt, write_api.getValue());
//
//        size_t idLen = String(channelIDSt).length();
//
//        size_t apiLen = String(writeAPISt).length();
//
//        char channelInit = EEPROM.read(4001);  // first character of channelID is stored in EEPROM address 4001
//        char apiKeyInit = EEPROM.read(4002);   // Only overwrite channelIDSt and writeAPISt if new value of the first character is different from what was saved.
//
//        if (channelInit != channelIDSt[0])
//        {
//          for (unsigned int a = 50; a < 50 + idLen; a++)
//          {
//            EEPROM.write((a), channelIDSt[a - 50]);
//          }
//          EEPROM.write(saveIDLen, idLen);
//        }
//
//        if(apiKeyInit != writeAPISt[0])
//        {
//          for (unsigned int b = 70; b < 70 + apiLen; b++)
//          {
//            EEPROM.write((b), writeAPISt[b - 70]);
//          }
//          EEPROM.write(saveAPILen, apiLen);
//        }

//        String ssidString = WiFi.SSID();      // retrieve ssid and password form the WifiManager library
//        String passwordString = WiFi.psk();
//
//        size_t ssidLen = ssidString.length();
//        size_t passLen = passwordString.length();
//
//        Serial.println(ssidLen);
//        Serial.println(passLen);
//
//        char ssidChar[20];
//        char passwordChar[20];
//
//        ssidString.toCharArray(ssidChar, ssidLen + 1);
//        passwordString.toCharArray(passwordChar, passLen + 1);
//
//        for (unsigned int a = 10; a < 10 + ssidLen; a++)
//        {
//          EEPROM.write((a), ssidChar[a - 10]);             // save ssid and ssid length to EEPROM
//        }
//        EEPROM.write(saveSSIDLen, ssidLen);
//
//        for (unsigned int b = 30; b < 30 + passLen; b++)
//        {
//          EEPROM.write((b), passwordChar[b - 30]);          // save password and password length to EEPROM
//        }
//        EEPROM.write(savePWLen, passLen);
//
//        EEPROM.write(4001, channelIDSt[0]);                 // save first characters of channel ID and api key to EEPROM
//        EEPROM.write(4002, writeAPISt[0]);
//
//        EEPROM.commit();

        tft.setCursor(16, 265);
        tft.println("Settings saved. Restarting");

        delay(1000);

//        ESP.reset();
      }
      else if ((x > 3 && x < 237) && (y > 162 && y < 206)) // upload data
      {

        drawBlankDialogueBox();
//        tft.setCursor(38, 100);
//        tft.println("Connecting to Wifi..");
//        delay(100);
//        Serial.println(ssid);
//        Serial.println(password);

//        WiFi.begin(ssid, password);
//
//        while (WiFi.status() != WL_CONNECTED) {    // Wait for the Wi-Fi to connect
//          delay(100);
//        }
//
//        tft.setCursor(36, 160);
//        tft.println("Creating JSON file..");
//        createJsonFile();                         // reads logged data from EEPROM and creates a json file
//        Serial.println(jsonBuffer);
//        delay(1000);
//        tft.setCursor(70, 220);
//        tft.println("Uploading..");
//        delay(1000);
//
//        char secondHalf[50] = "\",\"updates\":";
//        strcat(data, channelAPIkey);
//        strcat(data, secondHalf);
//
//        strcat(data,jsonBuffer);                // concatenate strings together and store in array named data
//        strcat(data,"}");
//
//        Serial.println(data);
//
//        client.stop();
//        String data_length = String(strlen(data)+1);
//
//        if (client.connect(server, 80)) {          // post data to thingspeak
//          char temp1[100] = "POST /channels/";
//          char temp2[30] = "/bulk_update.json HTTP/1.1";
//
//          strcat(temp1, channelID);
//          strcat(temp1, temp2);
//
//          client.println(temp1);
//          client.println("Host: api.thingspeak.com");
//          client.println("User-Agent: mw.doc.bulk-update (Arduino ESP8266)");
//          client.println("Connection: close");
//          client.println("Content-Type: application/json");
//          client.println("Content-Length: "+data_length);
//          client.println();
//          client.println(data);
//          client.stop();
//
//          WiFi.disconnect();
//          WiFi.mode( WIFI_OFF );                // turn off wifi
//          WiFi.forceSleepBegin();
//          delay(1);

          clearLogs();                 // erase logs and re-initialize the json buffer
          tft.setCursor(43, 260);
          tft.println("Resetting Device..");
          delay(1000);
//          ESP.reset();
        }
        else
        {
          tft.setCursor(50, 260);
          tft.println("Failed to upload");
          delay(1000);
//          ESP.reset();
        }

      }
      else if ((x > 3 && x < 237) && (y > 114 && y < 158)) // logging
      {
        isLogging = !isLogging;
        if (isLogging)
        {
          tft.fillRoundRect(3, 114, 234, 44, 4, 0x3B8F);
          tft.drawRoundRect(3, 114, 234, 44, 4, WHITE);
          tft.setCursor(38, 145);
          tft.println("LOGGING ON");
        }
        else
        {
          tft.fillRoundRect(3, 114, 234, 44, 4, 0xB9C7);
          tft.drawRoundRect(3, 114, 234, 44, 4, WHITE);
          tft.setCursor(33, 145);
          tft.println("LOGGING OFF");
        }
      }
      else if ((x > 3 && x < 237) && (y > 214 && y < 258))  // device mode
      {
        page = 8;
        drawDeviceModePage();
      }
    }
  }
  else if (page == 6) // timed count setup page
  {
    if (interval < 10)
    {
      intervalSize = 1;
    }
    else if (interval < 100)
    {
      intervalSize = 2;
    }
    else
    {
      intervalSize = 3;
    }

    tft.setFont();
    tft.setTextSize(3);
    tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
    tft.setCursor((185 - (intervalSize - 1) * 11), 146);
    tft.println(interval);

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315))
      {
        page = 0;
        drawHomePage();
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 60; a++)
        {
          count[a] = 0; // counts need to be reset to prevent errorenous readings
        }
        for (int b = 0; b < 5; b++)
        {
          fastCount[b] = 0;
        }
        for (int c = 0; c < 180; c++)
        {
          slowCount[c] = 0;
        }
      }
      else if ((x > 145 && x < 235) && (y > 271 && y < 315))
      {
        page = 7;
        drawTimedCountRunningPage(interval, intervalSize);
      }
      else if ((x > 160 && x < 220) && (y > 70 && y < 120))
      {
        interval += 5;
        if (interval >= 995)
        {
          interval = 995;
        }
        tft.fillRect(160, 130, 70, 40, ILI9341_BLACK);
      }
      else if ((x > 160 && x < 220) && (y > 185 && y < 245))
      {
        interval -= 5;
        if (interval <= 5)
        {
          interval = 5;
        }
        tft.fillRect(160, 130, 70, 40, ILI9341_BLACK);
      }
    }
  }
  else if (page == 7) // timed count running page
  {
    elapsedTime = millis() - startMillis;
    if(elapsedTime < intervalMillis)
    {
      if((millis() - previousMillis) >= 1000)
      {
        previousMillis = millis();

        tft.setFont();
        tft.setTextSize(3);
        tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK);
        tft.setCursor(101, 181);
        tft.println(currentCount);

        cpm = float(currentCount) / float((1 + elapsedTime) / 60000.0);

        tft.setCursor(101, 226);
        tft.println(cpm);

        if(cpm < 10)
        {
          tft.fillRect(170, 225, 50, 40, ILI9341_BLACK);
        }
        else if(cpm < 100)
        {
          tft.fillRect(190, 225, 35, 40, ILI9341_BLACK);
        }
        else if(cpm < 1000)
        {
          tft.fillRect(209, 225, 18, 40, ILI9341_BLACK);
        }
      }
      progress = map(elapsedTime, 0, intervalMillis, 0, 217);
      tft.fillRect(12, 105, progress, 16, 0x25A6);
    }
    else
    {
      if (completed == 0)
      {
        drawCloseButton();
        completed = 1;
      }
    }

    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 70 && x < 170) && (y > 271 && y < 315))
      {
        page = 0;
        drawHomePage();
        currentCount = 0;
        previousCount = 0;
        for (int a = 0; a < 60; a++)
        {
          count[a] = 0; // counts need to be reset to prevent errorenous readings
        }
        for (int b = 0; b < 5; b++)
        {
          fastCount[b] = 0;
        }
        for (int c = 0; c < 180; c++)
        {
          slowCount[c] = 0;
        }
      }
    }
  }
  else if (page == 8)          // device mode selection page
  {
    if (!ts.touched())
      wasTouched = 0;
    if (ts.touched() && !wasTouched)
    {
      wasTouched = 1;
      TS_Point p = ts.getPoint();
      x = map(p.x, TS_MINX, TS_MAXX, 240, 0);
      y = map(p.y, TS_MINY, TS_MAXY, 320, 0);

      if ((x > 4 && x < 62) && (y > 271 && y < 315)) // back button
      {
        page = 5;
        if (EEPROM.read(saveDeviceMode) != deviceMode) // check current EEPROM value and only write if new value is different
        {
          EEPROM.write(saveDeviceMode, deviceMode);
//          EEPROM.commit();
        }
        drawWifiPage();
      }
      else if ((x > 4 && x < 234) && (y > 70 && y < 120))
      {
        deviceMode = 0;
        tft.setFont(&FreeSans12pt7b);
        tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
        tft.setCursor(13, 103);
        tft.println("GEIGER COUNTER");

        tft.fillRoundRect(4, 128, 232, 48, 4, ILI9341_BLACK);
        tft.setCursor(30, 160);
        tft.println("MON. STATION");

      }
      else if ((x > 4 && x < 234) && (y > 127 && y < 177))
      {
        deviceMode = 1;
        tft.setFont(&FreeSans12pt7b);
        tft.fillRoundRect(4, 71, 232, 48, 4, ILI9341_BLACK);
        tft.setCursor(13, 103);
        tft.println("GEIGER COUNTER");

        tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
        tft.setCursor(30, 160);
        tft.println("MON. STATION");

      }
    }
  }
}

void drawHomePage()
{

  tft.fillRect(1, 21, 237, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);

  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setTextSize(1);
  tft.setTextColor(ILI9341_CYAN);
  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(2, 16);
  tft.println("GC-20");
  tft.setTextColor(ILI9341_WHITE);

  tft.setFont();
  tft.setTextSize(2);
  tft.setCursor(118, 4);
  tft.println("+");
  tft.setTextSize(1);
  tft.setFont(&FreeSans9pt7b);

  tft.drawBitmap(103, 2, betaBitmap, 18, 18, ILI9341_WHITE);
  tft.drawBitmap(128, 2, gammaBitmap, 12, 18, ILI9341_WHITE);

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);
  tft.fillRoundRect(3, 23, 234, 69, 3, DOSEBACKGROUND);
  tft.setCursor(16, 40);
  tft.println("EFFECTIVE DOSE RATE:");
  tft.setCursor(165, 85);
  tft.setFont(&FreeSans12pt7b);
  if (doseUnits == 0)
  {
    tft.println("uSv/hr");
  }
  else if (doseUnits == 1)
  {
    tft.println("mR/hr");
  }

  tft.fillRoundRect(3, 94, 234, 21, 3, 0x2DC6);
  tft.setCursor(15, 110);
  tft.setFont(&FreeSans9pt7b);
  tft.setTextColor(ILI9341_WHITE);
  tft.setTextSize(1);
  tft.println("NORMAL BACKGROUND");

  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(7, 141);
  tft.println("CPM:");
  tft.drawRoundRect(3, 117, 234, 32, 3, DOSEBACKGROUND);

  tft.fillRoundRect(3, 151, 185, 105, 4, 0x630C);
  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(9, 171);
  tft.println("CUMULATIVE DOSE");
  tft.setCursor(7, 205);
  tft.println("Counts:");
  if (doseUnits == 0)
  {
    tft.setCursor(34, 235);
    tft.println("uSv:");
  }
  else if (doseUnits == 1)
  {
    tft.setCursor(37, 235);
    tft.println("mR:");
  }

  tft.fillRoundRect(3, 259, 58, 57, 3, 0x3B8F);
  tft.drawBitmap(1, 257, settingsBitmap, 60, 60, ILI9341_WHITE);

  tft.fillRoundRect(64, 259, 95, 57, 3, 0x6269);
  tft.setFont(&FreeSans12pt7b);
  tft.setTextSize(1);
  tft.setCursor(74, 284);
  tft.println("TIMED");
  tft.setCursor(70, 309);
  tft.println("COUNT");

  if (integrationMode == 0)
  {
    tft.fillRoundRect(162, 259, 74, 57, 3, 0x2A86);
    tft.setCursor(180, 283);
    tft.println("INT");
    tft.setCursor(177, 309);
    tft.println("60 s");
  }
  else if (integrationMode == 1)
  {
    tft.fillRoundRect(162, 259, 74, 57, 3, 0x2A86);
    tft.setCursor(180, 283);
    tft.println("INT");
    tft.setCursor(184, 309);
    tft.println("5 s");
  }
  else if (integrationMode == 2)
  {
    tft.fillRoundRect(162, 259, 74, 57, 3, 0x2A86);
    tft.setCursor(180, 283);
    tft.println("INT");
    tft.setCursor(169, 309);
    tft.println("180 s");
  }

  if (ledSwitch)
  {
    tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 153, ledOnBitmap, 45, 45, ILI9341_WHITE);
  }
  else if (!ledSwitch)
  {
    tft.fillRoundRect(190, 151, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 153, ledOffBitmap, 45, 45, ILI9341_WHITE);
  }
  if (buzzerSwitch)
  {
    tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 208, buzzerOnBitmap, 45, 45, ILI9341_WHITE);
  }
  else if (!buzzerSwitch)
  {
    tft.fillRoundRect(190, 205, 46, 51, 3, 0x6269);
    tft.drawBitmap(190, 208, buzzerOffBitmap, 45, 45, ILI9341_WHITE);
  }
  tft.setFont(&FreeSans9pt7b);
  if (isLogging)
  {
    tft.setCursor(175, 16);
    tft.println("L");
  }
  else
  {
    tft.fillRect(175, 2, 18, 18, ILI9341_BLACK);
  }

  if (deviceMode)
  {
    tft.drawBitmap(188, 1, wifiBitmap, 19, 19, ILI9341_WHITE);
  }
  else
  {
    tft.fillRect(188, 1, 19, 19, ILI9341_BLACK);
  }
}

void drawSettingsPage()
{
  digitalWrite(D3, LOW);
  digitalWrite(D0, LOW);

  drawFrame();

  tft.fillRoundRect(3, 23, 234, 35, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(57, 48);
  tft.println("SETTINGS");
  tft.drawFastHLine(59, 51, 117, WHITE);

  tft.fillRoundRect(3, 64, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 64, 234, 44, 4, WHITE);
  tft.setCursor(44, 94);
  tft.println("DOSE UNITS");

  tft.fillRoundRect(3, 114, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 114, 234, 44, 4, WHITE);
  tft.setCursor(5, 145);
  tft.println("ALERT THRESHOLD");

  tft.fillRoundRect(3, 164, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 164, 234, 44, 4, WHITE);
  tft.setCursor(37, 194);
  tft.println("CALIBRATION");

  tft.fillRoundRect(3, 214, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 214, 234, 44, 4, WHITE);
  tft.setCursor(8, 244);
  tft.println("LOGGING AND WIFI");

  drawBackButton();
}

void drawUnitsPage()
{
  drawFrame();

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(84, 51);
  tft.println("UNITS");
  tft.drawFastHLine(86, 55, 71, WHITE);

  drawBackButton();

  tft.drawRoundRect(3, 70, 234, 50, 4, WHITE);
  if (doseUnits == 0)
    tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
  tft.setCursor(30, 103);
  tft.println("Sieverts (uSv/hr)");

  tft.drawRoundRect(3, 127, 234, 50, 4, WHITE);
  if (doseUnits == 1)
    tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
  tft.setCursor(47, 160);
  tft.println("Rems (mR/hr)");
}

void drawAlertPage()
{
  drawFrame();

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(4, 51);
  tft.println("ALERT THRESHOLD");
  tft.drawFastHLine(5, 55, 229, WHITE);

  drawBackButton();

  tft.setCursor(30, 164);
  tft.println("uSv/hr:");

  tft.drawRoundRect(130, 70, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(131, 71, 58, 58, 4, 0x2A86);
  tft.drawRoundRect(130, 185, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(131, 186, 58, 58, 4, 0x2A86);

  tft.setCursor(140, 113);
  tft.setTextSize(3);
  tft.println("+");
  tft.setCursor(148, 232);
  tft.println("-");
  tft.setTextSize(1);
}

void drawCalibrationPage()
{
  drawFrame();

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(47, 51);
  tft.println("CALIBRATE");
  tft.drawFastHLine(48, 55, 133, WHITE);

  drawBackButton();

  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(8, 154);
  tft.println("Conversion Factor");
  tft.setCursor(8, 174);
  tft.println("(CPM per uSv/hr)");

  tft.drawRoundRect(160, 70, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(161, 71, 58, 58, 4, 0x2A86);
  tft.drawRoundRect(160, 185, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(161, 186, 58, 58, 4, 0x2A86);

  tft.setCursor(170, 113);
  tft.setFont(&FreeSans12pt7b);
  tft.setTextSize(3);
  tft.println("+");
  tft.setCursor(178, 232);
  tft.println("-");
  tft.setTextSize(1);
}

void drawWifiPage()
{
  drawFrame();

  drawBackButton();

  tft.fillRoundRect(3, 23, 234, 35, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(7, 48);
  tft.println("LOGGING AND WIFI");
  tft.drawFastHLine(8, 51, 222, WHITE);

  tft.fillRoundRect(3, 64, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 64, 234, 44, 4, WHITE);
  tft.setCursor(48, 94);
  tft.println("WIFI SETUP");

  if (isLogging)
  {
    tft.fillRoundRect(3, 114, 234, 44, 4, 0x3B8F);
    tft.drawRoundRect(3, 114, 234, 44, 4, WHITE);
    tft.setCursor(38, 145);
    tft.println("LOGGING ON");
  }
  else
  {
    tft.fillRoundRect(3, 114, 234, 44, 4, 0xB9C7);
    tft.drawRoundRect(3, 114, 234, 44, 4, WHITE);
    tft.setCursor(33, 145);
    tft.println("LOGGING OFF");
  }

  tft.fillRoundRect(3, 164, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 164, 234, 44, 4, WHITE);
  tft.setCursor(31, 194);
  tft.println("UPLOAD DATA");

  tft.fillRoundRect(3, 214, 234, 44, 4, 0x2A86);
  tft.drawRoundRect(3, 214, 234, 44, 4, WHITE);
  tft.setCursor(35, 244);
  tft.println("DEVICE MODE");

  if (addr > 2000)
  {
    tft.setFont(&FreeSans9pt7b);
    tft.setCursor(80, 297);
    tft.println("Log memory full");
  }
}

void drawTimedCountPage()
{
  drawFrame();

  drawBackButton();

  tft.fillRoundRect(145, 271, 92, 45, 3, 0x3B8F);
  tft.drawRoundRect(145, 271, 92, 45, 3, ILI9341_WHITE);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(149, 302);
  tft.println("BEGIN!");

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setCursor(34, 51);
  tft.println("TIMED COUNT");
  tft.drawFastHLine(35, 55, 163, WHITE);

  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(5, 162);
  tft.println("Duration (minutes):");

  tft.drawRoundRect(160, 70, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(161, 71, 58, 58, 4, 0x2A86);
  tft.drawRoundRect(160, 185, 60, 60, 4, ILI9341_WHITE);
  tft.fillRoundRect(161, 186, 58, 58, 4, 0x2A86);

  tft.setCursor(170, 113);
  tft.setFont(&FreeSans12pt7b);
  tft.setTextSize(3);
  tft.println("+");
  tft.setCursor(178, 232);
  tft.println("-");
  tft.setTextSize(1);

  cpm = 0;
  progress = 0;

}

void drawTimedCountRunningPage(int duration, int size)
{
  drawFrame();

  drawCancelButton();

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setTextSize(1);
  tft.setCursor(34, 51);
  tft.println("TIMED COUNT");
  tft.drawFastHLine(35, 55, 163, WHITE);

  tft.drawRoundRect(3, 66, 234, 95, 4, ILI9341_WHITE);
  tft.drawRect(10, 103, 220, 20, ILI9341_WHITE);
  tft.drawRoundRect(3, 164, 234, 103, 4, ILI9341_WHITE);

  tft.setCursor(58, 90);
  tft.println("Progress:");
  tft.setCursor(13, 150);
  tft.println("Duration:");
  tft.setCursor(115, 150);
  tft.println(duration);
  tft.setCursor((135 + (size - 1)*15), 150);
  tft.println("min");
  tft.setCursor(15, 200);
  tft.println("Counts:");
  tft.setCursor(37, 245);
  tft.println("CPM:");

  currentCount = 0;
  startMillis = millis();
  intervalMillis = duration * 60000;
  completed = 0;
}

void drawDeviceModePage()
{
  drawFrame();

  tft.fillRoundRect(3, 23, 234, 40, 3, 0x3B8F);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(34, 51);
  tft.println("DEVICE MODE");
  tft.drawFastHLine(35, 57, 160, WHITE);

  drawBackButton();

  tft.drawRoundRect(3, 70, 234, 50, 4, WHITE);
  if (deviceMode == 0)
  tft.fillRoundRect(4, 71, 232, 48, 4, 0x2A86);
  tft.setCursor(13, 103);
  tft.println("GEIGER COUNTER");

  tft.drawRoundRect(3, 127, 234, 50, 4, WHITE);
  if (deviceMode == 1)
  tft.fillRoundRect(4, 128, 232, 48, 4, 0x2A86);
  tft.setCursor(30, 160);
  tft.println("MON. STATION");

  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(20, 200);
  tft.println("Press Back button and");
  tft.setCursor(20, 220);
  tft.println("reset device for changes");
  tft.setCursor(20, 240);
  tft.println("to take effect");
}

void isr() // interrupt service routine
{
  if ((micros() - 200) > previousIntMicros){
    currentCount++;
    cumulativeCount++;
  }
  previousIntMicros = micros();
}

void drawBackButton(){
  tft.fillRoundRect(4, 271, 62, 45, 3, 0x3B8F);
  tft.drawRoundRect(4, 271, 62, 45, 3, ILI9341_WHITE);
  tft.drawBitmap(4, 271, backBitmap, 62, 45, ILI9341_WHITE);
}

void drawFrame(){
  tft.fillRect(2, 21, 236, 298, ILI9341_BLACK);
  tft.drawRect(0, 0, tft.width(), tft.height(), ILI9341_WHITE);

  tft.drawRoundRect(210, 4, 26, 14, 3, ILI9341_WHITE);
  tft.drawLine(209, 8, 209, 13, ILI9341_WHITE); // Battery symbol
  tft.drawLine(208, 8, 208, 13, ILI9341_WHITE);
  tft.fillRect(212, 6, 22, 10, ILI9341_BLACK);
  tft.fillRect(batteryMapped, 6, (234 - batteryMapped), 10, ILI9341_GREEN);

  tft.setFont(&FreeSans9pt7b);
  tft.setCursor(2, 16);
  tft.setTextColor(ILI9341_CYAN);

  tft.setTextSize(1);
  tft.println("GC-20");
  tft.setTextColor(ILI9341_WHITE);

  tft.setFont();
  tft.setTextSize(2);
  tft.setCursor(118, 4);
  tft.println("+");
  tft.setTextSize(1);
  tft.setFont(&FreeSans9pt7b);

  tft.drawBitmap(103, 2, betaBitmap, 18, 18, ILI9341_WHITE);
  tft.drawBitmap(128, 2, gammaBitmap, 12, 18, ILI9341_WHITE);

  tft.drawLine(1, 20, 238, 20, ILI9341_WHITE);
  tft.setFont(&FreeSans9pt7b);
  if (isLogging)
  {
    tft.setCursor(175, 16);
    tft.println("L");
  }
  else
  {
    tft.fillRect(175, 2, 18, 18, ILI9341_BLACK);
  }

  if (deviceMode)
  {
    tft.drawBitmap(188, 1, wifiBitmap, 18, 18, ILI9341_WHITE);
  }
  else
  {
    tft.fillRect(188, 1, 19, 19, ILI9341_BLACK);
  }
}

void drawCancelButton()
{
  tft.fillRoundRect(70, 271, 100, 45, 3, 0xB9C7);
  tft.drawRoundRect(70, 271, 100, 45, 3, ILI9341_WHITE);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(72, 302);
  tft.println("CANCEL");
}

void drawCloseButton()
{
  tft.fillRoundRect(70, 271, 100, 45, 3, 0x3B8F);
  tft.drawRoundRect(70, 271, 100, 45, 3, ILI9341_WHITE);
  tft.setTextSize(1);
  tft.setFont(&FreeSans12pt7b);
  tft.setCursor(79, 302);
  tft.println("CLOSE");
}

long EEPROMReadlong(long address) {
  long four = EEPROM.read(address);
  long three = EEPROM.read(address + 1);
  long two = EEPROM.read(address + 2);
  long one = EEPROM.read(address + 3);

  return ((four << 0) & 0xFF) + ((three << 8) & 0xFFFF) + ((two << 16) & 0xFFFFFF) + ((one << 24) & 0xFFFFFFFF);
}

void EEPROMWritelong(int address, long value) {
  byte four = (value & 0xFF);
  byte three = ((value >> 8) & 0xFF);
  byte two = ((value >> 16) & 0xFF);
  byte one = ((value >> 24) & 0xFF);

  EEPROM.write(address, four);
  EEPROM.write(address + 1, three);
  EEPROM.write(address + 2, two);
  EEPROM.write(address + 3, one);
}

void createJsonFile()
{
  Serial.println(addr);
  for (int i = 100; i < addr; i += 4)
  {
    int count = EEPROMReadlong(i);

    int deltaT = 600;
    strcat(jsonBuffer,"{\"delta_t\":");
    size_t lengthT = String(deltaT).length();
    char temp[10];
    String(deltaT).toCharArray(temp,lengthT + 1);
    strcat(jsonBuffer,temp);
    strcat(jsonBuffer,",");

    strcat(jsonBuffer, "\"field1\":");
    lengthT = String(count).length();
    String(count).toCharArray(temp, lengthT + 1);

    strcat(jsonBuffer,temp);
    strcat(jsonBuffer,"},");

  }
  size_t len = strlen(jsonBuffer);
  jsonBuffer[len-1] = ']';

}

void drawBlankDialogueBox()
{
  tft.setFont(&FreeSans9pt7b);
  tft.setTextSize(1);

  tft.fillRoundRect(20, 50, 200, 220, 6, ILI9341_BLACK);
  tft.drawRoundRect(20, 50, 200, 220, 6, ILI9341_WHITE);

}

void clearLogs()
{
  for (int j = 100; j < 4000; j ++)
  {
    EEPROMWritelong(j, 0);
  }
  for (int k = 1; k < 1000; k++) // keep the first character in jsonBuffer: "["
  {
    jsonBuffer[k] = 0;
  }
  addr = 100;
  EEPROMWritelong(96, addr);
  EEPROM.write(saveLoggingMode, 0);
//  EEPROM.commit();
  isLogging = 0;
}

Obrigado e feliz Halloween a todos!

Link para o comentário
Compartilhar em outros sites

Crie uma conta ou entre para comentar

Você precisa ser um usuário para fazer um comentário

Criar uma conta

Crie uma nova conta em nossa comunidade. É fácil!

Crie uma nova conta

Entrar

Já tem uma conta? Faça o login.

Entrar agora
 Compartilhar
Ir à lista de tópicos

Sobre o Clube do Hardware

No ar desde 1996, o Clube do Hardware é uma das maiores, mais antigas e mais respeitadas comunidades sobre tecnologia do Brasil. Leia mais

Direitos autorais

Não permitimos a cópia ou reprodução do conteúdo do nosso site, fórum, newsletters e redes sociais, mesmo citando-se a fonte. Leia mais

Mais

×
×
  • Criar novo...



GRÁTIS: ebook Redes Wi-Fi – 2ª Edição

EBOOK GRÁTIS!

CLIQUE AQUI E BAIXE AGORA MESMO!
