Osciloscópio com PIC

Pedrolobo8 · 8 de maio de 2012

Galera, venho mais um vez pedir a ajuda de vocês, desta vez eu resolvi fazer um osciloscópio com um PIC, a princípio estou utilizando o PIC18F4520 mas, após o projeto pronto, pretendo migrar para o PIC16F877A. Bom, dei uma estuda em relação ao funcionamento de um osciloscópio e, pelo o que eu entendi, ele usa um conversor analógico/digital. Fiz um projeto para testes e consegui medir algumas ondas, porém não consegui "ligar" os pontos da leitura e acima de uns 60Hz a leitura se embaralha toda. Espero que possam me ajudar. Grande abraço.

Código



#include        "__T6963C.h"


//Configurações do LCD
char T6963C_dataPort at PORTD;
sbit T6963C_ctrlwr  at RC0_bit;
sbit T6963C_ctrlrd  at RE0_bit;
sbit T6963C_ctrlcd  at RE1_bit;
sbit T6963C_ctrlrst at RE2_bit;
sbit T6963C_ctrlwr_Direction  at TRISC0_bit;
sbit T6963C_ctrlrd_Direction  at TRISE0_bit;
sbit T6963C_ctrlcd_Direction  at TRISE1_bit;
sbit T6963C_ctrlrst_Direction at TRISE2_bit;
//----------------------------------------//

//Configurações dos botões
sbit UP at RB1_bit;
sbit DW at RB0_bit;
//----------------------------------------//

//Variáreis
bit press;
bit AltAMP;
char txt[]="0000";
short Amplitude=0;
unsigned short X=0,Y=0,Soma=10;
int Valor=0,Cont=0,I=0;//,Ponto[240];
//----------------------------------------//

void Converter(int VR){//Converte a leitura dos volts de entrada no pino AN0
  txt[0]=(((VR / 100) % 10) + 48);
  txt[1]=',';
  txt[2]=(((VR / 10  ) % 10) + 48);
  txt[4]=(((VR / 1   ) % 10) + 48);
}
//----------------------------------------//

void Grafico_Ondas(){//Estou usando este para exibir os "pontos" da leitura
  Valor=((54 * Valor) / 1024);
  Y=(32 - Valor);
  T6963C_dot(X, (Y + Soma), T6963C_WHITE);
  X++;
  if (X==240){
    X=0;
    T6963C_grFill(0);
    T6963C_line(0, 8, 239, 8, T6963C_WHITE);
  }
}
//----------------------------------------//

void botões(){//Apenas para pegar a leitura dos botões
  if (!UP && !press){
    press=1;
    AltAMP=1;
    Amplitude++;
    if(Amplitude==9)Amplitude=8;
  }
  else if (!DW && !press){
    press=1;
    AltAMP=1;
    Amplitude--;
    if(Amplitude<0)Amplitude=0;
  }
  else if (UP && DW)press=0;
}
//----------------------------------------//

void main() {

  ADCON0=0x08;//Configuração dos canais analógicos e comparadores
  ADCON1=0x0F;
  ADCON2=0x0F;
  CMCON|=0x07;

  TRISA0_bit=1;//Configuração das portas I/O
  TRISA1_bit=1;
  TRISB0_bit=1;
  TRISB1_bit=1;
  TRISB2_bit=1;

  press=0;//Zerando vareáveis
  AltAMP=1;

  T6963C_init(240,64,8);//Iniciando LCD T6963C
  T6963C_graphics(1);
  T6963C_text(1);
  T6963C_panelFill(0);

  T6963C_write_text("    V",0,0,T6963C_ROM_MODE_XOR);
  T6963C_line(0, 8, 239, 8, T6963C_WHITE);

  while(1){

    Valor=ADC_Read(0);

    Grafico_Ondas();

    Converter(((Valor * 4.9) / 10.24)); //Converte e exibi tensão lida
    T6963C_write_text(txt,0,0,T6963C_ROM_MODE_XOR);

    Valor=ADC_Read(1);//Lê AN1 e posiciona devidamente a linha a ser exibida no LCD
    Soma=((Valor * 30) / 1024) + 10;

    botões();

    switch (Amplitude){//Seleciona Delay
      case 0:Delay_us(500);break;
      case 1:Delay_ms(1)  ;break;
      case 2:Delay_ms(2)  ;break;
      case 3:Delay_ms(5)  ;break;
      case 4:Delay_ms(10) ;break;
      case 5:Delay_ms(20) ;break;
      case 6:Delay_ms(50) ;break;
      case 7:Delay_ms(100);break;
      case 8:Delay_ms(200);break;
    }

    if (AltAMP){//Exibe Delay selecionado
      AltAMP=0;
      switch (Amplitude){
        case 0: T6963C_write_text("0.5ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 1: T6963C_write_text("1.0ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 2: T6963C_write_text("2.0ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 3: T6963C_write_text("5.0ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 4: T6963C_write_text(" 10ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 5: T6963C_write_text(" 20ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 6: T6963C_write_text(" 50ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 7: T6963C_write_text("100ms",11,0,T6963C_ROM_MODE_XOR);break;
        case 8: T6963C_write_text("200ms",11,0,T6963C_ROM_MODE_XOR);break;
      }
    }
  }
}
//----------------------------------------//

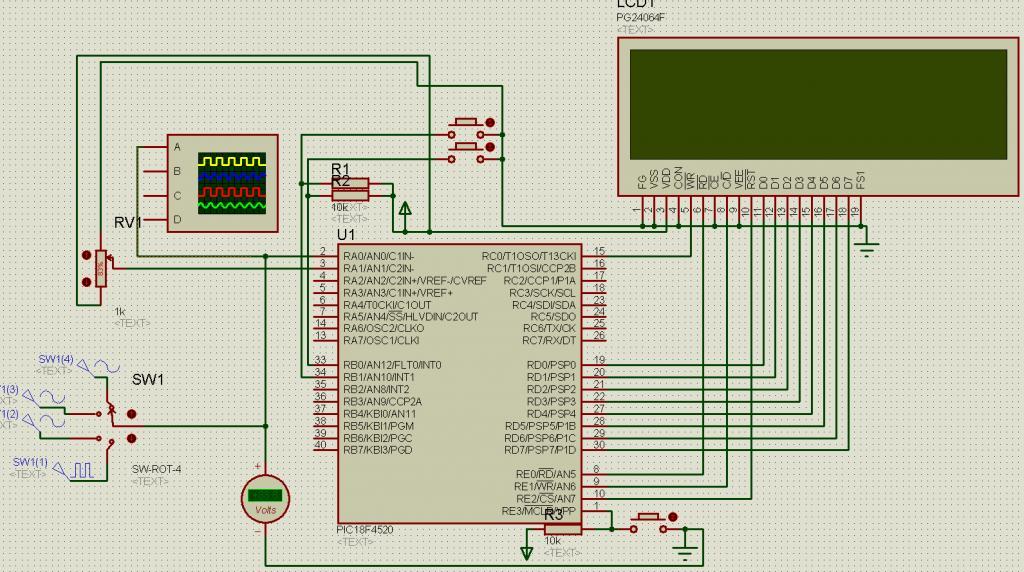

Circuito:

Pedrolobo8 · 9 de maio de 2012

Alguém pode me ajudar?

Pedrolobo8 · 16 de maio de 2012

Ainda não resolvi o problema!

sauloRJ · 16 de maio de 2012

Se você conseguir esse feito IMPOSSÍVEL tenha certeza que eu vou querer copiar de você

Projetos_afg · 16 de maio de 2012

A parte da conversão AD precisa ser feita em assembly para que a o tempo fique certo. O tempo que o PIC demora para desenhar no display deve ser contabilizado. O correto seria fazer uma leitura de 1 quadro inteiro e ir armazenando na memória RAM, e só depois jogar para o display. Precisaria implementar também um trigger para não perder a sincronia com o sinal.

O conversor AD desse PIC consegue fazer 100mil conversões por segundo se devidamente configurado, dá para ler até uma onda de 5KHz com 20 pontos por ciclo. Não é um ocoscópio muito útil.

chacalgbi · 16 de maio de 2012

Frequencímetros e Ociloscópios com PIC, tenho ali na gaveta um monte de plaquinhas de projetos abandonados.... rsrs

Compre um Multimetro Minipa ET-2075B. Tem frequencimetro de até 30MHz, barra gráfica e duty Cicle, capacimetro e todo o resto.

Comprei ele por 149,00 na Hayamax (o preço do site é pra cliente final, ou seja o dobro do preço).

Mas se seu intuito é apenas didático e quer tentar mesmo, eu vou ficar no aguardo... rs

Mas uma sugestão, você tá testando no Proteus, eu acho que frequências muito altas ele não vai simular legal.

Pedrolobo8 · 16 de maio de 2012

Projetos_afg, obrigado pela dica de armazenar na RAM, realmente fez uma diferença muito grande.

Chacalgbi, estou fazendo por precisar de um e por motivos didáticos também. Me interessei muito pelo multímetro, estou precisando trocar o meu, mesmo.

Eu fiz algumas alterações e deu uma melhorada considerável, mas ainda não está como eu quero. Se puderem me ajudar a melhorar o projeto eu ficarei muito grato.

Novo código:



#include        "__T6963C.h"


//Configurações do LCD
char T6963C_dataPort at PORTD;
sbit T6963C_ctrlwr  at RC0_bit;
sbit T6963C_ctrlrd  at RE0_bit;
sbit T6963C_ctrlcd  at RE1_bit;
sbit T6963C_ctrlrst at RE2_bit;
sbit T6963C_ctrlwr_Direction  at TRISC0_bit;
sbit T6963C_ctrlrd_Direction  at TRISE0_bit;
sbit T6963C_ctrlcd_Direction  at TRISE1_bit;
sbit T6963C_ctrlrst_Direction at TRISE2_bit;
//----------------------------------------//

//Configurações dos botões
sbit UP at RB1_bit;
sbit DW at RB0_bit;
//----------------------------------------//

// ------------------------------------------------------
// GLCD Picture name: Tela_Pricipal.bmp
// GLCD Model: T6963C 240x64
// ------------------------------------------------------

const code char Tela_Pricipal[1920] = {
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0
};
//----------------------------------------//

//Variáreis
bit press;
bit AltAMP;
char *txt="0000";
short Amplitude=0,Repetir=1;
unsigned short X=0,XX=0,Y=0,Soma=10;
int Valor=0,Leitura=240;
unsigned short Ponto[240];
//----------------------------------------//

void Converter(int VR){//Converte a leitura dos volts de entrada no pino AN0
  txt[0]=0;
  txt[1]=0;
  txt[2]=0;
  txt[3]=0;
  txt[0]=((VR / 100) % 10) + 48;
  txt[1]=',';
  txt[2]=((VR / 10 ) % 10) + 48;
  txt[3]=((VR / 1  ) % 10) + 48;
}
//----------------------------------------//

void Exibir_Onda(){//Exibe a onda no display

  short aux=0;

  T6963C_image(Tela_Pricipal);
  X=0;
  XX=0;
  while(X<Leitura){
    Y=(32 - Ponto[X]);
    for(aux=1;aux<=Repetir;aux++){
      T6963C_dot(XX, (Y + Soma), T6963C_WHITE);
      T6963C_dot(XX, ((Y + Soma) + 1), T6963C_WHITE);
      XX++;
    }
    X++;
  }
  X=0;
  Delay_ms(100);
}
//----------------------------------------//

void Alterar_Amplitude(){//Selecionar amplitude
  switch (Amplitude){
    case  0: T6963C_write_text("1/1 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  1: T6963C_write_text("1/2 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  2: T6963C_write_text("1/3 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  3: T6963C_write_text("1/4 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  4: T6963C_write_text("1/5 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  5: T6963C_write_text("1/6 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  6: T6963C_write_text("1/8 ",11,0,T6963C_ROM_MODE_XOR);break;
    case  7: T6963C_write_text("1/10",11,0,T6963C_ROM_MODE_XOR);break;
    case  8: T6963C_write_text("1/12",11,0,T6963C_ROM_MODE_XOR);break;
    case  9: T6963C_write_text("1/15",11,0,T6963C_ROM_MODE_XOR);break;
    case 10: T6963C_write_text("1/16",11,0,T6963C_ROM_MODE_XOR);break;
    case 11: T6963C_write_text("1/20",11,0,T6963C_ROM_MODE_XOR);break;
  }

  switch (Amplitude){
    case  0: {Leitura=240; Repetir= 1;}break;
    case  1: {Leitura=120; Repetir= 2;}break;
    case  2: {Leitura= 80; Repetir= 3;}break;
    case  3: {Leitura= 60; Repetir= 4;}break;
    case  4: {Leitura= 48; Repetir= 5;}break;
    case  5: {Leitura= 40; Repetir= 6;}break;
    case  6: {Leitura= 30; Repetir= 8;}break;
    case  7: {Leitura= 24; Repetir=10;}break;
    case  8: {Leitura= 20; Repetir=12;}break;
    case  9: {Leitura= 16; Repetir=15;}break;
    case 10: {Leitura= 15; Repetir=16;}break;
    case 11: {Leitura= 12; Repetir=20;}break;
  }
  X=0;
}
//----------------------------------------//

void botões(){//Apenas para pegar a leitura dos botões
  if (!UP && !press){
    press=1;
    AltAMP=1;
    Amplitude++;
    if(Amplitude==12)Amplitude=11;
  }
  else if (!DW && !press){
    press=1;
    AltAMP=1;
    Amplitude--;
    if(Amplitude<0)Amplitude=0;
  }
  else if (UP && DW)press=0;
}
//----------------------------------------//

void main() {

  ADCON0=0x08;//Configuração dos canais analógicos e comparadores
  ADCON1=0x0F;
  ADCON2=0x0F;
  CMCON|=0x07;

  TRISA0_bit=1;//Configuração das portas I/O
  TRISA1_bit=1;
  TRISB0_bit=1;
  TRISB1_bit=1;
  TRISB2_bit=1;

  press=0;//Zerando vareáveis
  AltAMP=1;

  T6963C_init(240,64,8);//Iniciando LCD T6963C
  T6963C_graphics(1);
  T6963C_text(1);
  T6963C_panelFill(0);

  T6963C_image(Tela_Pricipal);

  T6963C_write_text("    V",0,0,T6963C_ROM_MODE_XOR);

  while(1){

    Valor=ADC_Read(0);

    X++;
    if (X==Leitura){
      Exibir_Onda();
    }
    Ponto[X]=((54 * Valor) / 1024);

    Converter(((Valor * 5) / 10.24)); //Converte e exibi tensão lida
    T6963C_write_text(txt,0,0,T6963C_ROM_MODE_XOR);

    Valor=ADC_Read(1);//Lê AN1 e posiciona devidamente a linha a ser exibida no LCD
    Soma=((Valor * 30) / 1024) + 10;

    botões();

    if (AltAMP){//Exibe Amplitude selecionado
      AltAMP=0;
      Alterar_Amplitude();
    }

    Delay_us(10);

  }
}
//----------------------------------------//

rafael.luc · 16 de maio de 2012

Esse é um osciloscópio pra PC usando um PIC, veja se ajuda ao menos pode ver como funciona:

http://pablohoffman.com/cgi-bin/twiki/bin/view/Oscusb/WebHome

Pedrolobo8 · 17 de maio de 2012

rafael.luc, obrigado pelo link, me tirou algumas dúvidas.

Então, fiz algumas alterações no código e no hardware e ficou exatamente como eu queria!

Ele faz leituras até 4KHz, eu queria, se possível, ampliar essa capacidade. Se puderem me ajudar mais um pouco...

Código 2.0:



#include        "__T6963C.h"


//Configurações do LCD
char T6963C_dataPort at PORTD;
sbit T6963C_ctrlwr  at RC0_bit;
sbit T6963C_ctrlrd  at RE0_bit;
sbit T6963C_ctrlcd  at RE1_bit;
sbit T6963C_ctrlrst at RE2_bit;
sbit T6963C_ctrlwr_Direction  at TRISC0_bit;
sbit T6963C_ctrlrd_Direction  at TRISE0_bit;
sbit T6963C_ctrlcd_Direction  at TRISE1_bit;
sbit T6963C_ctrlrst_Direction at TRISE2_bit;
//----------------------------------------//

//Configurações dos botões
sbit UPA at RB1_bit;
sbit DWA at RB0_bit;
sbit UPV at RB3_bit;
sbit DWV at RB2_bit;
sbit STA at RB4_bit;
sbit LNH at RB5_bit;
//----------------------------------------//

// ------------------------------------------------------
// GLCD Picture name: Tela_Pricipal.bmp
// GLCD Model: T6963C 240x64
// ------------------------------------------------------

const code char Tela_Pricipal[1920] = {
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
  1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,   1,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,  16,
  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  16,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0
};
//----------------------------------------//

//Variáreis
bit press;
bit Start;
bit AltAMP;
bit AltStart;
bit AltLinha;
bit AltVr;
char *txt="0000";
short Amplitude=0,Repetir=1,Linha=0;
unsigned short X=0,XX=0,Y=0,Soma=10, OLDSoma=10;
int Valor=0,Leitura=240;
int Ponto[240];
float Vr=2.5;
//----------------------------------------//

void Converter(int VR){//Converte a leitura dos volts de entrada no pino AN0
  txt[0]=0;
  txt[1]=0;
  txt[2]=0;
  txt[3]=0;
  txt[0]=((VR / 100) % 10) + 48;
  txt[1]=',';
  txt[2]=((VR / 10 ) % 10) + 48;
  txt[3]=((VR / 1  ) % 10) + 48;
}
//----------------------------------------//

void Exibir_Onda(){//Exibe a onda no display

  short aux=0;

  T6963C_image(Tela_Pricipal);
  X=0;
  XX=0;
  while(X<Leitura){
    Y=(32 - Ponto[X]);
    for(aux=1;aux<=Repetir;aux++){
      T6963C_dot(XX, (Y + Soma), T6963C_WHITE);
      if (Linha==1) T6963C_dot(XX, ((Y + Soma) + 1), T6963C_WHITE);
      else if (Linha==2){
        T6963C_dot(XX, ((Y + Soma) + 1), T6963C_WHITE);
        T6963C_dot(XX, ((Y + Soma) + 2), T6963C_WHITE);
      }
      XX++;
    }
    X++;
  }
  X=0;
  Delay_ms(100);
}
//----------------------------------------//

void Alterar_Amplitude(){//Selecionar amplitude
  switch (Amplitude){
    case  0: T6963C_write_text("1/1 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  1: T6963C_write_text("1/2 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  2: T6963C_write_text("1/3 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  3: T6963C_write_text("1/4 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  4: T6963C_write_text("1/5 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  5: T6963C_write_text("1/6 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  6: T6963C_write_text("1/8 ",6,0,T6963C_ROM_MODE_XOR);break;
    case  7: T6963C_write_text("1/10",6,0,T6963C_ROM_MODE_XOR);break;
    case  8: T6963C_write_text("1/12",6,0,T6963C_ROM_MODE_XOR);break;
    case  9: T6963C_write_text("1/15",6,0,T6963C_ROM_MODE_XOR);break;
    case 10: T6963C_write_text("1/16",6,0,T6963C_ROM_MODE_XOR);break;
    case 11: T6963C_write_text("1/20",6,0,T6963C_ROM_MODE_XOR);break;
  }

  switch (Amplitude){
    case  0: {Leitura=240; Repetir= 1;}break;
    case  1: {Leitura=120; Repetir= 2;}break;
    case  2: {Leitura= 80; Repetir= 3;}break;
    case  3: {Leitura= 60; Repetir= 4;}break;
    case  4: {Leitura= 48; Repetir= 5;}break;
    case  5: {Leitura= 40; Repetir= 6;}break;
    case  6: {Leitura= 30; Repetir= 8;}break;
    case  7: {Leitura= 24; Repetir=10;}break;
    case  8: {Leitura= 20; Repetir=12;}break;
    case  9: {Leitura= 16; Repetir=15;}break;
    case 10: {Leitura= 15; Repetir=16;}break;
    case 11: {Leitura= 12; Repetir=20;}break;
  }
  X=0;
}
//----------------------------------------//

void botões(){//Apenas para pegar a leitura dos botões
  if (!UPA && !press){
    press=1;
    AltAMP=1;
    Amplitude++;
    if(Amplitude==12)Amplitude=11;
  }
  else if (!DWA && !press){
    press=1;
    AltAMP=1;
    Amplitude--;
    if(Amplitude<0)Amplitude=0;
  }
  else if (!UPV && !press){
    press=1;
    AltVr=1;
    Vr = (Vr + 0.5);
    if(Vr>4.5)Vr=4.5;
  }
  else if (!DWV && !press){
    press=1;
    AltVr=1;
    Vr = (Vr - 0.5);
    if(Vr<0.5)Vr=0.5;
  }
  else if (!STA && !press){
    press=1;
    AltStart=1;
    Start=~Start;
  }
  else if (!LNH && !press){
    press=1;
    AltLinha=1;
    Linha++;
    if(Linha==3)Linha=0;
  }
  else if (UPA && DWA && UPV && DWV && STA && LNH)press=0;
}
//----------------------------------------//

void Exibe_Valor_linha(){
  if (Linha==0)T6963C_write_text("L:1",11,0,T6963C_ROM_MODE_XOR);
  else if (Linha==1)T6963C_write_text("L:2",11,0,T6963C_ROM_MODE_XOR);
  else if (Linha==2)T6963C_write_text("L:3",11,0,T6963C_ROM_MODE_XOR);
}
//----------------------------------------//

void Exibe_Start(){
  if (Start)T6963C_write_text("Start",25,0,T6963C_ROM_MODE_XOR);
  else T6963C_write_text("Stop ",25,0,T6963C_ROM_MODE_XOR);
}
//----------------------------------------//

void Converter_Exibir_Vr(){

  short Vrf=0;
  char *txtVr="000";

  txtVr[0]=0;
  txtVr[1]=0;
  txtVr[2]=0;

  Vrf=(Vr * 10);

  txtVr[0]=((Vrf / 10) % 10) + 48;
  txtVr[1]=',';
  txtVr[2]=((Vrf / 1 ) % 10) + 48;

  T6963C_write_text(txtVr,19,0,T6963C_ROM_MODE_XOR);
}
//----------------------------------------//

void main() {

  ADCON0=0x08;//Configuração dos canais analógicos e comparadores
  ADCON1=0x0B;
  ADCON2=0x0F;
  CMCON|=0x07;

  TRISA0_bit=1;//Configuração das portas I/O
  TRISA1_bit=1;
  TRISB = 0x3F;

  press=0;//Zerando vareáveis
  Start=1;
  AltAMP=1;
  AltStart=1;
  AltLinha=1;
  AltVr=1;

  T6963C_init(240,64,8);//Iniciando LCD T6963C
  T6963C_graphics(1);
  T6963C_text(1);
  T6963C_panelFill(0);

  T6963C_image(Tela_Pricipal);

  T6963C_write_text("    V",0,0,T6963C_ROM_MODE_XOR);
  T6963C_write_text("Vr:   V",16,0,T6963C_ROM_MODE_XOR);

  while(1){

    Valor=ADC_Read(0);

    Converter(((Valor * 5) / 10.24)); //Converte e exibi tensão lida
    T6963C_write_text(txt,0,0,T6963C_ROM_MODE_XOR);

    Valor=(Valor * (5 - Vr)) / 10.23;

    if (Start){
      X++;
      if (X==Leitura){
        Exibir_Onda();
      }
      Ponto[X]=((54 * Valor) / 500);
    }
    else{
      X=0;
      Delay_ms(150);
    }

    Valor=ADC_Read(1);//Lê AN1 e posiciona devidamente a linha a ser exibida no LCD
    Soma=((Valor * 30) / 1024);

    if (!Start){
      if (OLDSoma!=Soma){
        Exibir_Onda();
      }
    }
    OLDSoma=Soma;

    botões();

    if (AltAMP){//Exibe Amplitude selecionado
      AltAMP=0;
      Alterar_Amplitude();
      if (!Start)Exibir_Onda();
    }

    if (AltLinha){
      AltLinha=0;
      Exibe_Valor_linha();
      if (!Start)Exibir_Onda();
    }

    if (AltStart){
      AltStart=0;
      Exibe_Start();
    }

    if (AltVr){
      AltVr=0;
      Converter_Exibir_Vr();
      if (!Start)Exibir_Onda();
    }

    Delay_us(10);

  }
}
//----------------------------------------//

Hardware 2.0:

Projetos_afg · 17 de maio de 2012

Até que frequência você quer chegar? Com o conversor AD você só consegue ler ondas de até 5KHz com 20 pontos por ciclo, ou 10KHz com 10 pontos por ciclo, e assim vai.

Acredito que não consegue uma velocidade muito maior que essa, já que estamos atingindo o limite da velocidade do conversor AD e do processamento do PIC. Você faz outras operações dentro da parte da leitura de um quadro. Para frequências altas, você não vai conseguir desenhar a onda em tempo real.

Para melhorar um pouco mais a velocidade, use uma rotina para ler os valores do conversor ad, e armazenar em um array sem nenhum processamento matemático ou lógico. Armazene os 240 bytes direto do conversor ad, e só depois converta esse valor para tensão e mostre a onda no display (leia apenas os 8 bits mais signifiicativos).
